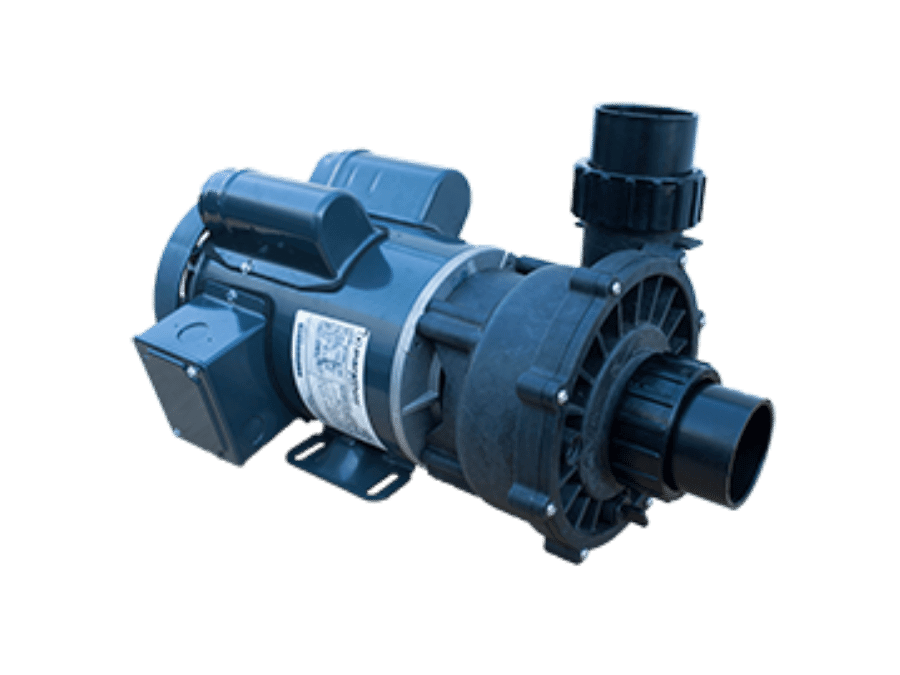

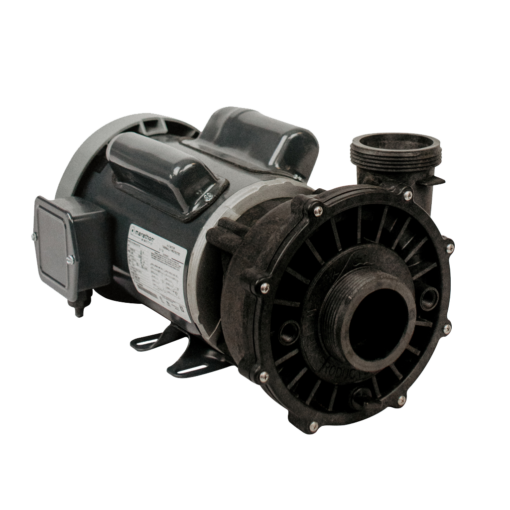

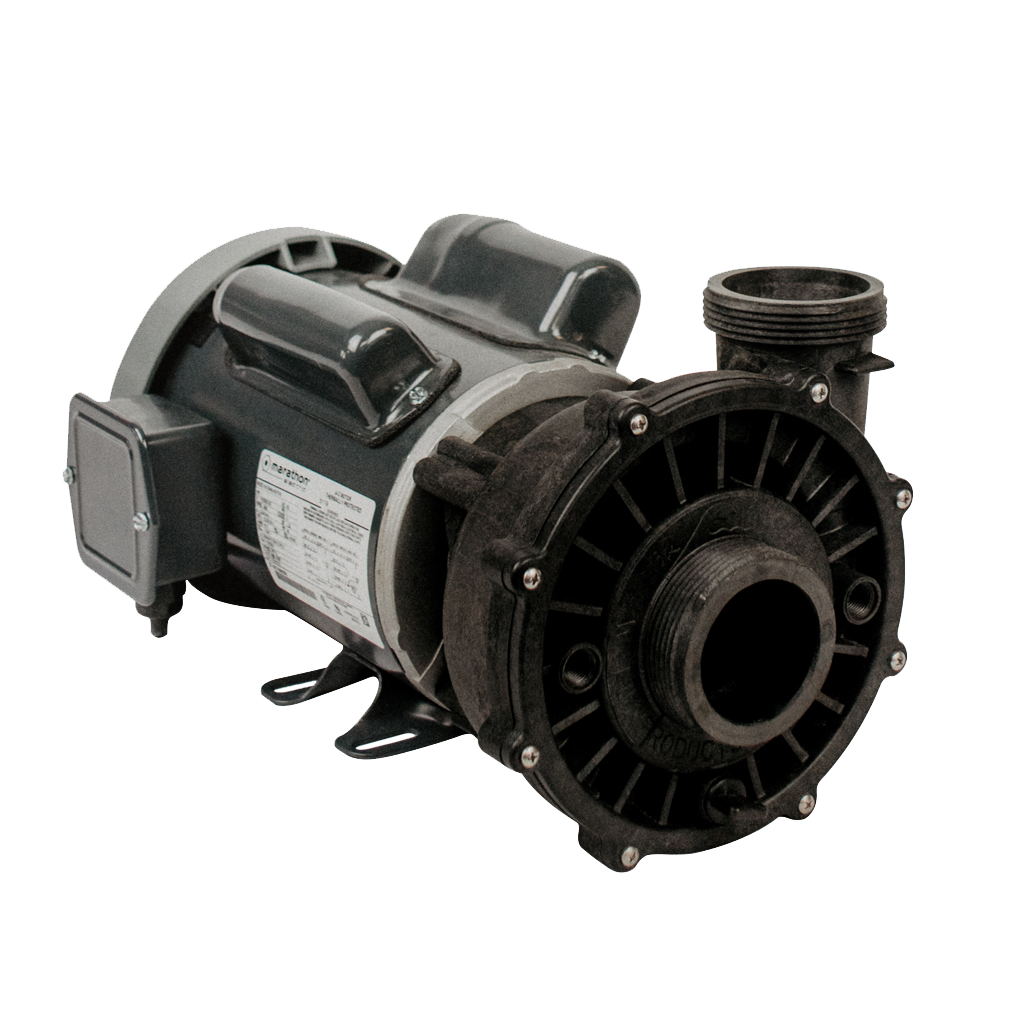

WLim Wave II Pump
WLim Wave II Pump - Image 2

WLim Wave II Pump

$696.00 – $908.00

The Wave Series pumps have a high-performing, proprietary design. The impeller, motor, and body are engineered to fit each motor exactly to create this signature pump. Features include emergency thermal protection shut-off, quick disconnect unions, 3-way discharge positions for less restriction, and a custom design for whisper-quiet operation. Ideal for high-flow/low-pressure systems, these pumps are specifically engineered for pond construction.

Stock Model Price
Wave II 7200 (1/4 HP) $696.00
Wave II 8400 (1/3 HP) $733.00
Wave II 9000 (1/2 HP) $789.00
Wave II+ 11400 (1 HP) $908.00
SKU: N/A Categories: , Tags: ,

Description

WLim Wave II Pump

Powerful Performance for Medium-Pressure Systems



The Wave II Series is engineered for high-volume bead filters and other medium-pressure applications in Koi ponds, water gardens, and large aquariums. Designed for quiet, efficient operation, each pump features a custom US motor to match custom impellers and diffusers! Giving us better performance and longer life. And is equipped for both 115V plug-in use and 230V hardwire installation. For higher-pressure requirements, consider the Wave II High Speed or Dragon High Speed models.



Key Features:

  • Quiet, Reliable Operation: Custom-built motor runs smoothly and quietly for consistent performance.
  • Medium-Pressure, High-Flow Design: TEFC motors operate at 1725/1425 RPM, delivering strong, stable water flow.
  • Saltwater Ready: Stainless steel shaft and epoxy-coated motor provide excellent corrosion resistance.
  • Durable Construction: Stainless steel screws throughout the wet end to ensure long-lasting reliability.
  • Easy Installation: Includes 2” unions on both inlet and outlet for quick, secure connections.
  • Built-In Safety: Integrated thermal protection automatically shuts off the motor to prevent overheating.
  • UL Certified: Meets high safety and performance standards.
  • Warranty Coverage: Industries best 5-year HASSLE FREE.
  • 115/230V rating



1/4 HP Wave II Description:
  • Industrial Baldor motor custom built for W. Lim Corporation Worldwide electrical capability – 115v / 230v ; 50 / 60 Hz TEFC- 1425/1725 RPM motor
  • 3 year limited warranty (on the motor)
  • Saltwater resistant (corrosion Epoxy Paint added on)
  • Wet-end built with stainless steel screws Strong glass filled ABS injection housing
  • 3-Way discharge positions for less restriction
  • Custom Designed and Engineered for Whisper Quiet operation
  • High Flow 2″ ports Includes 2 quick disconnect unions
  • Pre-wired for 115V and 6 ft. industrial cord
  • 24 Hour run-dry safety

1/3 HP Wave II Description:

  • Industrial Baldor motor custom built for W. Lim Corporation Worldwide electrical capability – 115v / 230v ; 50 / 60 Hz TEFC- 1425/1725 RPM motor
  • 3 year limited warranty (on the motor)
  • Saltwater resistant (corrosion Epoxy Paint added on) Wet-end built with stainless steel screws
  • Strong glass filled ABS injection housing 3-Way discharge positions for less restriction
  • Custom Designed and Engineered for Whisper Quiet operation
  • High Flow 2″ ports Includes 2 quick disconnect unions
  • Pre-wired for 115V and 6 ft. industrial cord
  • 24 Hour run-dry safety

1/4HP Wave II Description:

  • Industrial Baldor motor custom built for W. Lim Corporation Worldwide electrical capability – 115v / 230v ; 50 / 60 Hz TEFC- 1425/1725 RPM motor
  • 3 year limited warranty (on the motor)
  • Saltwater resistant (corrosion Epoxy Paint added on) Wet-end built with stainless steel screws
  • Strong glass filled ABS injection housing 3-Way discharge positions for less restriction
  • Custom Designed and Engineered for Whisper Quiet operation
  • High Flow 2″ ports Includes 2 quick disconnect unions
  • Pre-wired for 115V and 6 ft. industrial cord
  • 24 Hour run-dry safety

3/4HP Wave II Description:

  • Industrial Baldor motor custom built for W. Lim Corporation Worldwide electrical capability – 115v / 230v ; 50 / 60 Hz TEFC- 1425/1725 RPM motor
  • 3 year limited warranty (on the motor)
  • Saltwater resistant (corrosion Epoxy Paint added on)
  • Wet-end built with stainless steel screws Strong glass filled ABS injection housing
  • 3-Way discharge positions for less restriction
  • Custom Designed and Engineered for Whisper Quiet operation
  • High Flow 2″ ports Includes 2 quick disconnect unions
  • Pre-wired for 115V and 6 ft. industrial cord
  • 24 Hour run-dry safety

1 HP Wave II Description:

  • Specially design for Aquaculture, Koi Ponds, Waterscapes & Aquariums Worldwide electrical capability – 115v / 230v ; 50 / 60 Hz TEFC- 1425/1725 RPM
  • 3 year limited warranty (on the motor)
  • Saltwater resistant (corrosion Epoxy Paint added on)
  • Wet-end built with stainless steel screws Strong glass filled ABS injection housing
  • 3-Way discharge positions for less restriction
  • Custom Designed and Engineered for Whisper Quiet operation
  • High Flow 2″ ports Includes 2 quick disconnect unions
  • Pre-wired for 115V and 6 ft. industrial cord 24 Hour run-dry safety
  • Dimensions: L 16-3/4″ W 9″ H 9-1/4″ (dimensions w/out unions)
  • Specifications: GPH / Head: 8592gph/2.31ft @ 692W Weight: 48lbs Max Watts @ 115V: 657W/5.91A

Additional information

Weight 52 lbs
Dimensions 21 × 12 × 13 in
Model

Wave II 7200 (1/4 HP), Wave II 8400 (1/3 HP), Wave II 9000 (1/2 HP), Wave II 10000 HS (1 HP), Wave II 11000 HS (1 1/2 HP), Wave II+ 11400 (1 HP), Wave II 13000 HS (2 HP), Wave II 17000 HS (3 HP)
