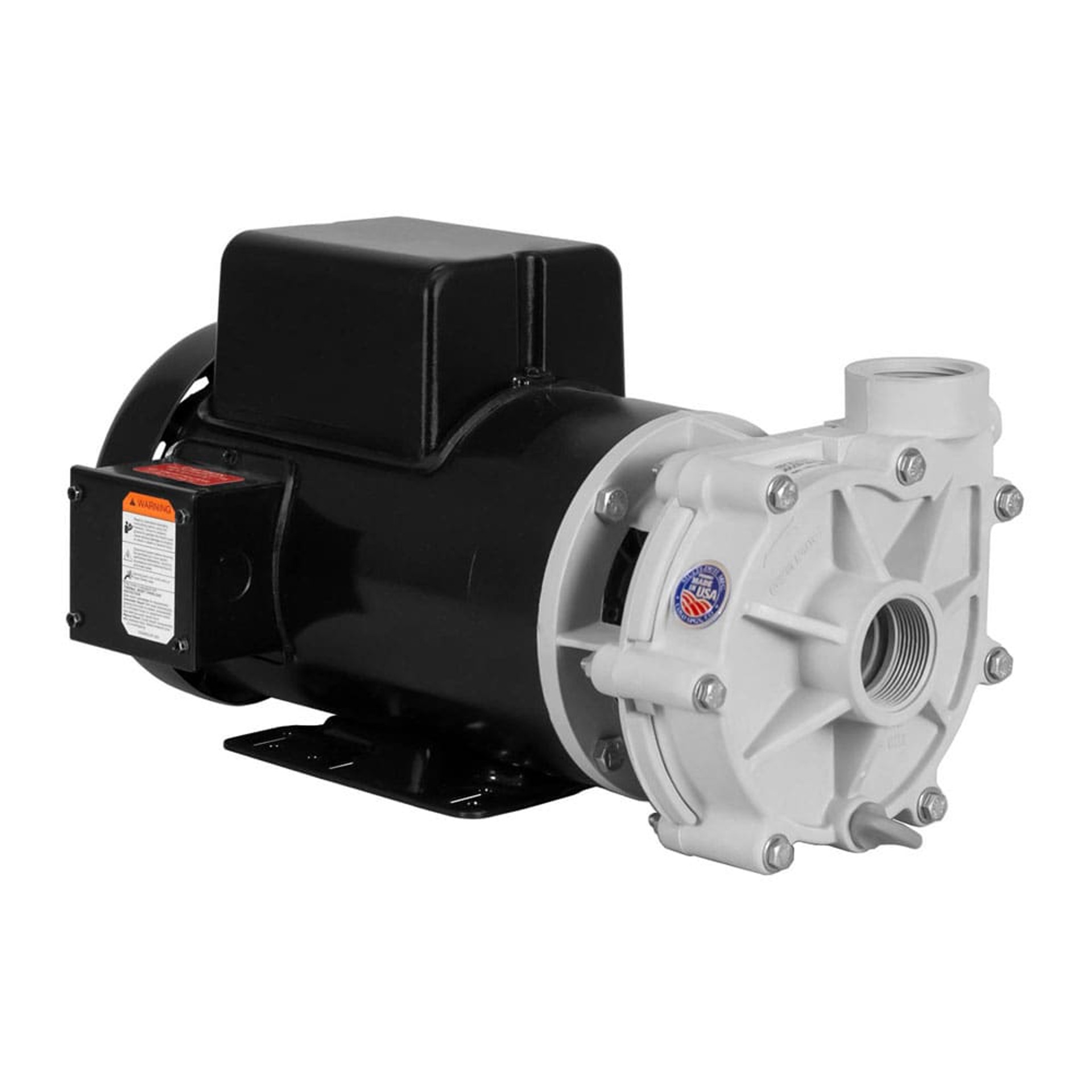

Sequence Power 1000 Series External Pumps
$1,088.00 – $1,180.00
Sequence centrifugal pumps are the most energy efficient water pumps available. The amount of water volume moved gph versus the amount of electrity they use is incredible. Sequence centrifugal pumps are designed and built to meet the special needs of ponds, waterscapes, aquaculture and large hydroponic systems. Buying quality really pays. Not only do you get years of dependable service, but you enjoy tremendous savings on your electric bill, every month. These are the work horses of the industry. They provide tremendous flow rates, with enough pressure head to handle the requirements of most systems with biological filters and moderate height waterfalls. They are also used extensively for the transfer and re-circulation requirements of filtration systems, water features, streams, fountains, hydroponic systems and aquaculture.
| Stock | Size | Price | |
|---|---|---|---|
| 8500GPH | $1,088.00 | ||
| 9200GPH | $1,180.00 | ||
| 11000GPH | $1,180.00 |
Description
Sequence Power 1000 Pump Series is an investment in the future. Sequence pumps are the leader in high-efficiency, external pumps for water features and koi ponds. The Power 1000 Pump Series can handle an abundant flow and pressure for any application that demands high performance. These external “out-of-pond” straight centrifugal pumps are built for longevity and ease of use. When properly installed they will provide dependable trouble-free service for years to come.
These high-performing fan-cooled motors have a 1.5″ inlet/outlet and are capable of flow rates up to 11,000 GPH and head pressures up to 72 feet. Each pump comes with an 8 foot power cord and a 5-year warranty.
Tech Specs
8,500 GPH
|
9,200 GPH
|
11,000 GPH
|
|
|---|---|---|---|
| Application | Out of Water | Out of Water | Out of Water |
| Motor Type | Straight Centrifugal | Straight Centrifugal | Straight Centrifugal |
| Sequence Model | 8500PWR55-LV, 8500PWR55 | 9200PWR69-LV, 9200PWR69 | 11000PWR72-LV, 11000PWR72 |
| Dimensions | 15″L x 8.7″W 8.6″H | 15″L x 8.7″W 8.6″H | 15″L x 8.7″W 8.6″H |
| Max Flow Rate | 8,500 GPH | 9,200 GPH | 11,000 GPH |
| Max Head Pressure | 55 Feet | 69 Feet | 72 Feet |
| GPH @ 10′ | 7,800 GPH | 8,580 GPH | 10,380 GPH |
| GPH @ 20′ | 7,080 GPH | 7,800 GPH | 9,540 GPH |
| GPH @ 30′ | 6,000 GPH | 7,020 GPH | 8,640 GPH |
| Inlet/Discharge Size | 1.5″ FPT | 1.5″ FPT | 1.5″ FPT |
| Wattage | 1,385-Watts | 1,744-Watts | 2,056-Watts |
| Voltage/Max Amps | 115 Volts / 10.76 Amps 230 Volts / 5.38 Amps |
115 Volts / 13.64 Amps 230 Volts / 6.82 Amps |
115 Volts / 17.16 Amps 230 Volts / 8.58 Amps |
| Motor Size | 1.5 HP | 2 HP | 2 HP |
| Max Case Pressure | 65 PSI | 65 PSI | 65 PSI |
| Motor Enclosure | Totally Enclosed, Fan-Cooled (TEFC) | Totally Enclosed, Fan-Cooled (TEFC) | Totally Enclosed, Fan-Cooled (TEFC) |
| Power Cord | 8 Feet | 8 Feet | 8 Feet |
| Warranty | 5-Year | 5-Year | 5-Year |
| Optional Check Valves (Sold Separately) |
Swing Check Valves | Swing Check Valves | Swing Check Valves |
| *Optional Strainer Baskets | 500 cu in | 500 cu in | 500 cu in |
*Optional Strainer Baskets (Sold Separately) are ideal to use with the Sequence Pump Series in applications that might encounter a lot of debris.
Additional information
| Size | 8500GPH, 9200GPH, 11000GPH |
|---|
