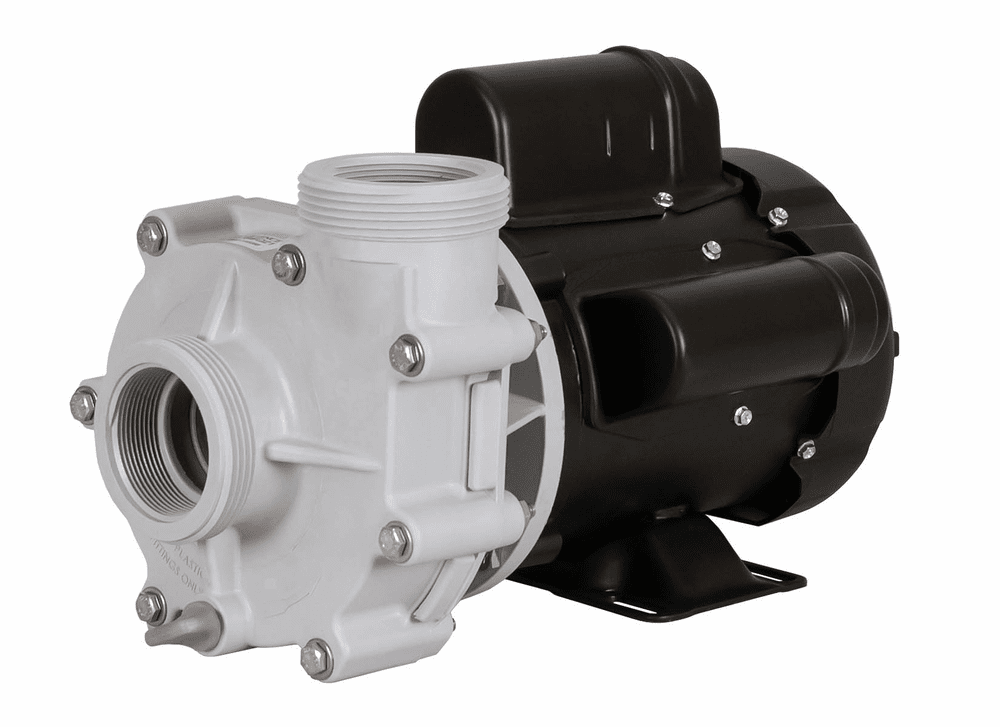

Sequence 4000 Series External Pumps
$703.00 – $832.00
Product Details
Sequence 4000 Pump Series are end-suction centrifugal motors, designed to be placed outside the pond or water. Protecting both you and your fish from oil slicks, and electrical leaks. The highly efficient 4000 Pump Series produce a maximum flow rate with minimal electrical consumption and last longer than submersible pumps.
Get up to 8,220 GPH and pressures up to 22′ using only 450 watts of power. Made in the USA and are specially designed for long-term continuous duty. Each model comes complete with, an 8′ power cord, 5-year warranty, and 2″ FNPT and buttress thread ports and unions for ease of use. Available in 115V or 230V
| Stock | Size | Price | |
|---|---|---|---|
| 3600GPH | $703.00 | ||
| 5000GPH | $706.00 | ||
| 5800GPH | $706.00 | ||
| 6900GPH | $832.00 | ||
| 8200GPH | $832.00 |
Description
Sequence® 4000 Series External Pump
The model 4000 series expansive design will meet today’s increased market demand for performance on all levels. This series is a perfect blend of medium pressure and ample flow for the majority of ponds. Motor is totally enclosed, fan-cooled for durability. These External end-suction centrifugal pumps are ideal for water features, garden ponds, and Koi fish ponds. These sequence pumps can serve a wide variety of water transfer and re-circulation applications. They are designed to operate efficiently over a wide range of flows and pressures. In larger systems, you can use two or more Sequence pumps in parallel to multiply your flow. These external pumps can be installed near areas of relaxation and entertainment and will generate minimal noise levels. These pumps longevity is legendary.
Features:
- low cost of ownership
- Ideal for water features, garden ponds, and Koi fish ponds
- Serve a wide variety of water transfer and re-circulation applications
- Designed to operate efficiently over a wide range of flows and pressures
- Generate minimal noise levels
- Motor is totally enclosed
- Fan-cooled Motor
- Made in USA
- 3 Year Limited Manufacturer Warranty
Instruction Manual .PDF
Specification Sheet .PDF
Tech Specs
3,600 GPH
|
5,000 GPH
|
5,800 GPH
|
|
|---|---|---|---|
| Application | Out of Water | Out of Water | Out of Water |
| Motor Type | Straight Centrifugal | Straight Centrifugal | Straight Centrifugal |
| Sequence Model | 3600SEQ20 or 3600SEQ20-HV |
5000SEQ20 or 5000SEQ20-HV |
5800SEQ21 or 5800SEQ21-HV |
| Dimensions | 14.8″L x 7.7″H | 14.8″L x 7.7″H | 14.8″L x 7.7″H |
| Max Flow Rate | 3,600 GPH | 5,000 GPH | 5,800 GPH |
| Max Head Pressure | 20.5 Feet | 20.2 Feet | 21 Feet |
| GPH @ 4′ | 3,120 GPH | 4,500 GPH | 5,220 GPH |
| GPH @ 8′ | 2,640 GPH | 3,840 GPH | 4,500 GPH |
| GPH @ 12′ | 2,100 GPH | 3,120 GPH | 3,720 GPH |
| Inlet Size | 2″ FPT | 2″ FPT | 2″ FPT |
| Discharge Size | 2″ FPT | 2″ FPT | 2″ FPT |
| Wattage | 227 Watts | 263 Watts | 296 Watts |
| Voltage / Max Amps | 115V / 1.9 Amps 230V / 0.95 Amps |
115V / 2.3 Amps 230V / 1.15 Amps |
115V / 2.6 Amps 230V / 1.3 Amps |
| Motor Size | 1/3 HP | 1/3 HP | 1/3 HP |
| Max Case Pressure | 65 PSI | 65 PSI | 65 PSI |
| Motor Enclosure | Totally Enclosed, Fan-Cooled (TEFC) | Totally Enclosed, Fan-Cooled (TEFC) | Totally Enclosed, Fan-Cooled (TEFC) |
| Power Cord | 8 Feet | 8 Feet | 8 Feet |
| Warranty | 5-Year | 5-Year | 5-Year |
| **Optional Strainer Baskets w/ 2″ Adaptors |
90 cu in | 90 cu in | 90 cu in |
|
6,800 GPH
|
8,200 GPH
|
|
|---|---|---|
| Application | Out of Water | Out of Water |
| Motor Type | Straight Centrifugal | Straight Centrifugal |
| Sequence Model | 6800SEQ22 or 6800SEQ22-HV |
8200SEQ22 or 8200SEQ22-HV |
| Dimensions | 14.8″L x 7.7″H | 14.8″L x 7.7″H |
| Max Flow Rate | 6,840 GPH | 8,220 GPH |
| Max Head Pressure | 22.2 Feet | 22.3 Feet |
| GPH @ 4′ | 6,240 GPH | 7,500 GPH |
| GPH @ 8′ | 5,580 GPH | 6,720 GPH |
| GPH @ 12′ | 4,800 GPH | 5,760 GPH |
| Inlet Size | 2″ FPT | 2″ FPT |
| Discharge Size | 2″ FPT | 2″ FPT |
| Wattage | 376 Watts | 450 Watts |
| Voltage / Max Amps | 115V / 3.4 Amps 230V / 1.7 Amps |
115V / 4.0 Amps 230V / 2 Amps |
| Voltage | 115 Volts | 115 Volts |
| Motor Size | 1/2 HP | 1/2 HP |
| Max Case Pressure | 65 PSI | 65 PSI |
| Motor Enclosure | Totally Enclosed, Fan-Cooled (TEFC) | Totally Enclosed, Fan-Cooled (TEFC) |
| Power Cord | 8 Feet | 8 Feet |
| Warranty | 5-Year | 5-Year |
| **Optional Strainer Baskets w/ 2″ Adaptors |
90 cu in | 90 cu in |
*Optional Strainer Baskets (Sold Separately) are ideal to use with the Sequence Pump Series in applications that might occur a lot of debris.
Additional information
| Size | 3600GPH, 5000GPH, 5800GPH, 6900GPH, 8200GPH |
|---|
