HiBlow HP Series Chamber Block and Filter

$59.99$129.99

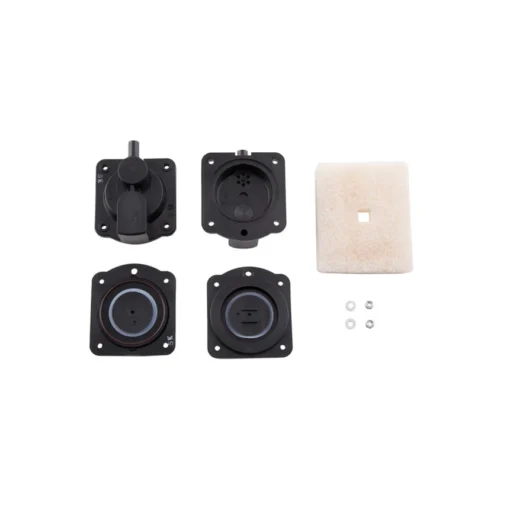

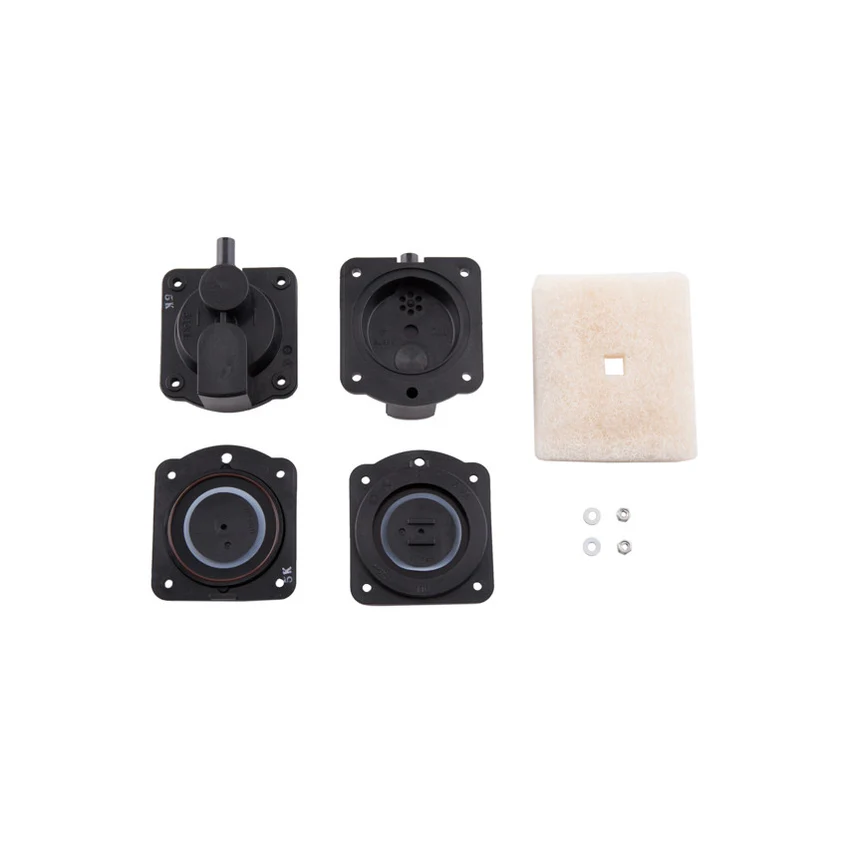

The complete kit includes everything you need to repair your Hiblow HP series. All Hiblow HP Diaphragm Kits includes 2 Chamber Block with 2 Diaphragms and 1 Air Filter for the HP model air pumps along with 2 Retaining Nuts with Washers along with hardware.

Stock size Price
HP-30/40 $59.99
HP-60/80 $69.99
HP-100/120 $124.99
HP-100LL/120LL $129.99
HP-150/200 $129.99
XP-40/60/80 $69.99
DUO-50/60/80 $74.99
SKU: N/A Category:

Description

40PC000031P HP-30/40 CHAMBER BLOCK & FILTER

80PC000042P HP-60/80 CHAMBER BLOCK & FILTER

120PC20012P HP-100/120 CHAMBER BLOCK & FILTER

120PC20022P HP100LL/120LL CHAMBER BLOCK & FILTER (2 pc. set)

200PC20012P HP-150/200 CHAMBER BLOCK & FILTER

XP-40/60/80 CHAMBER BLOCK & FILTER

DUO-50/60/80 CHAMBER BLOCK & FILTER

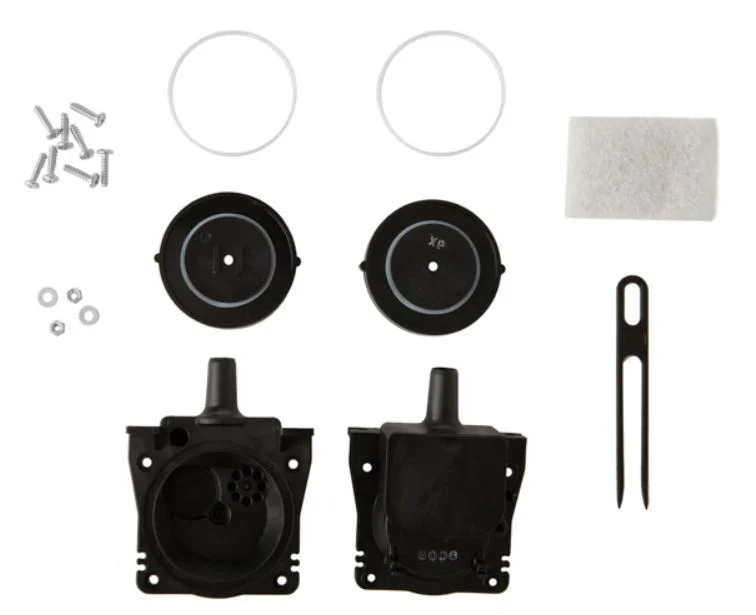

Hiblow XP-40/60/80 Diaphragm Kit includes 2 Chamber Block with 2 Diaphragm and 1 Air Filter as well as 2 retaining rings and 1 rod spacing tool for the all WG Series model air pumps along with 2 Retaining Nuts with Washers along with hardware.

DUO-50/60/80 includes new diaphragms, valves, and replacement filter. **Not compatible with HP dual port models: HP-50W, HP-60W, and HP-80W.

You don’t necessarily need to get your pump replaced. If this is the first time your Hiblow HP has stopped, all you need is the repair kit to rebuild your aerator. Hiblow air pumps need to be rebuilt about every 3 to 6 years, depending on where you live. One thing to look for is red dust in the unit; this means the magnetic rod block is getting too close to the coils. This happens when the coils get weak. It is advised you get a new hiblow air pump if this has happened.

One of the first signs your septic tank aerator needs to be rebuilt if the septic tank alarms are going off. This happens due to the pressure dropping, which happens due to the aerator not working correctly. If you are unsure if you can rebuild your aerator because of how old it is, the date is printed on the barcode sticker of the pump on the back. The first four numbers are your month and year made in that order. Anything under 10 years should be able to be rebuilt. Anything over, we advise buying a new Hiblow HP system.

Additional information

size

HP-30/40, HP-60/80, HP-100/120, HP-100LL/120LL, HP-150/200, XP-40/60/80, DUO-50/60/80
