Hiblow Adjustable Height Pond Diffuser

$289.99

The Hiblow Adjustable Height Diffuser is a medium bubble diffuser designed to allow linear diaphragm aerators to operate efficiently in deeper water, reducing electricity costs and maintenance previously associated with rocking piston technology. With six adjustable height options ranging from 11.5” to 35.5”, it supports aeration at depths of up to 13 feet while keeping diffuser sticks raised above the muck. This elevated design also helps maintain an open hole in the ice without disturbing the warmer water at the pond’s bottom, providing a refuge for fish during colder months. The system includes two medium bubble stick diffusers spanning 25.5” to maximize water circulation and an 8 lb. rust-resistant stainless steel base plate that stabilizes, sinks, and keeps the diffuser submerged without the need for additional weighting materials. Designed for quick assembly, this complete package offering an efficient and reliable aeration solution. These diffusers are ideal for recreation and fishing ponds, golf course ponds, irrigation ponds, farm ponds, lagoons, and lakes.

Category:

Description

Use HIBLOW linear diaphragm aerators for deeper water applications

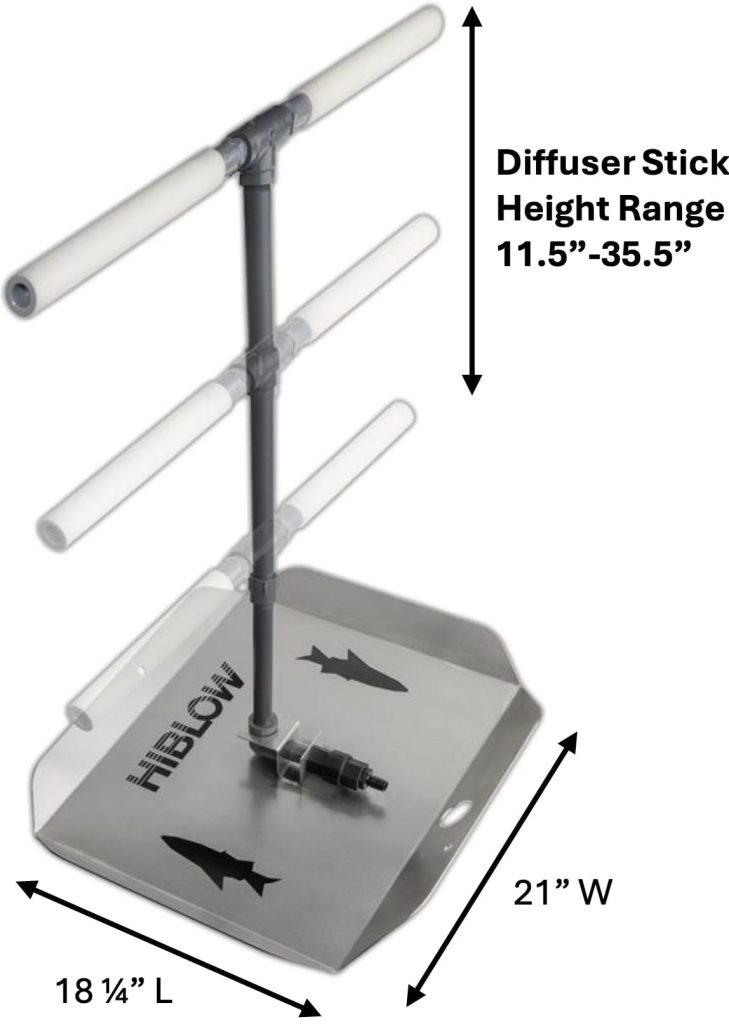

  • 6 height options ranging from 11.5″ to 35.5″ enables HIBLOW aerators to be used for pond aeration as deep as 13′ displacing expensive rocking piston technology which is commonly used for depths exceeding 8-10′.
  • Most HIBLOW aerators run on 100 watts or less using less than 20% of the electricity of a rocking piston
  • HIBLOW aerators are easier and more cost efficient to repair as compared to a rocking piston

Keeps diffuser sticks out of the muck/ vegetation

Keeps a hole in the ice without mixing the bottom of the pond

  • Allows fish to take refuge in the warmer water at the bottom of the pond in the winter

Medium bubble diffuser advantage

  • (2) 12″ HIBLOW medium bubble diffuser sticks span 25.5″ creating a wide plume of bubbles
  • Adds dissolved oxygen while maximizing water circulation
  • Self cleaning with 40 LPM of continuous 24/7, 365 air flow

Complete Package/ Quick Assembly

  • The 8 lb. rust resistant stainless steel base plate design stabilizes, sinks, and keeps the diffuser submerged — no need to go to the store to buy gravel or sand.
  • The complete package includes everything you need for quick and easy installation

Units Include:

  • Stainless Steel base plate assembly
  • Installed check valve
  • Barbs for 3/8″, 1/2″, and 5/8″ ID tubing
  • Hose clamp
  • (3) PVC extenders to adjust diffuser height
  • (2) 12″ medium bubble diffuser sticks
  • Rope

Applications:

Recreation and fishing ponds
Golf course ponds
Irrigation ponds
Farm ponds
Lagoons
Lakes
