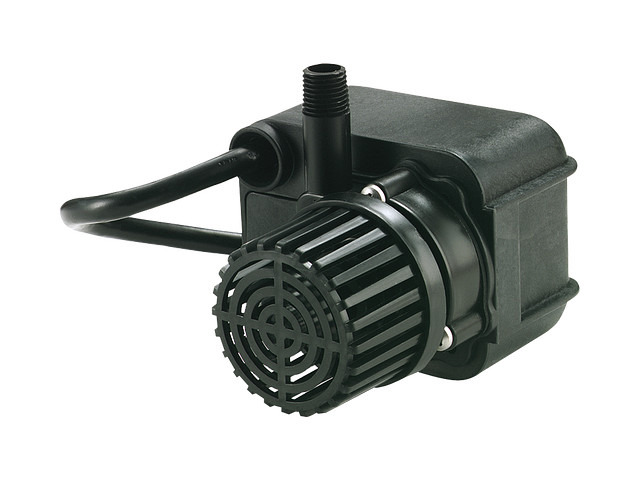

Franklin Electric PE-1F-PW Continuous Circulation Direct Drive Pump
$94.50
| 170 GPH Direct-Drive Pond Pump | |||||||
| Epoxy filled pump is compact in design, produces superior water flow and has corrosion resistant plastic housing. Ideal for the water gardening environment. | |||||||
|
-
Spec Sheet PE Series Pumps_OL Spec Sheet_WEB.pdf Instruction Sheet 998115.pdf
Description
The PE-1F-PW pump features an epoxy filled pump is compact in design, produces superior water flow and has corrosion resistant plastic housing. Ideal for the water gardening environment. Ideal for use with fountain nozzles, pond ornaments, filters, and circulating ponds – Designed to operate continuously with maximum energy efficiency – Corrosion resistant body designed for non-potable submersible use
Ratings |
|
| HP | 1/125 hp |
| Amps – Full Load | 0.6 A |
| Full Load Watts | 36 W |
| Volts | 115 VAC |
| Maximum Flow Rate – 60Hz | 2.83 gpm / 170 gph |
| Shut-Off | 6.5 ft |
Installation |
|
| Discharge | 0.25 “ |
| Suction Type | Screened |
| Pump Length | 4.52 “ |
| Product Weight w/ Pack | 3.4 lb |
| Carton Length | 7 “ |
| Carton Width | 5.25 “ |
| Carton Height | 4.63 “ |
Other |
|
