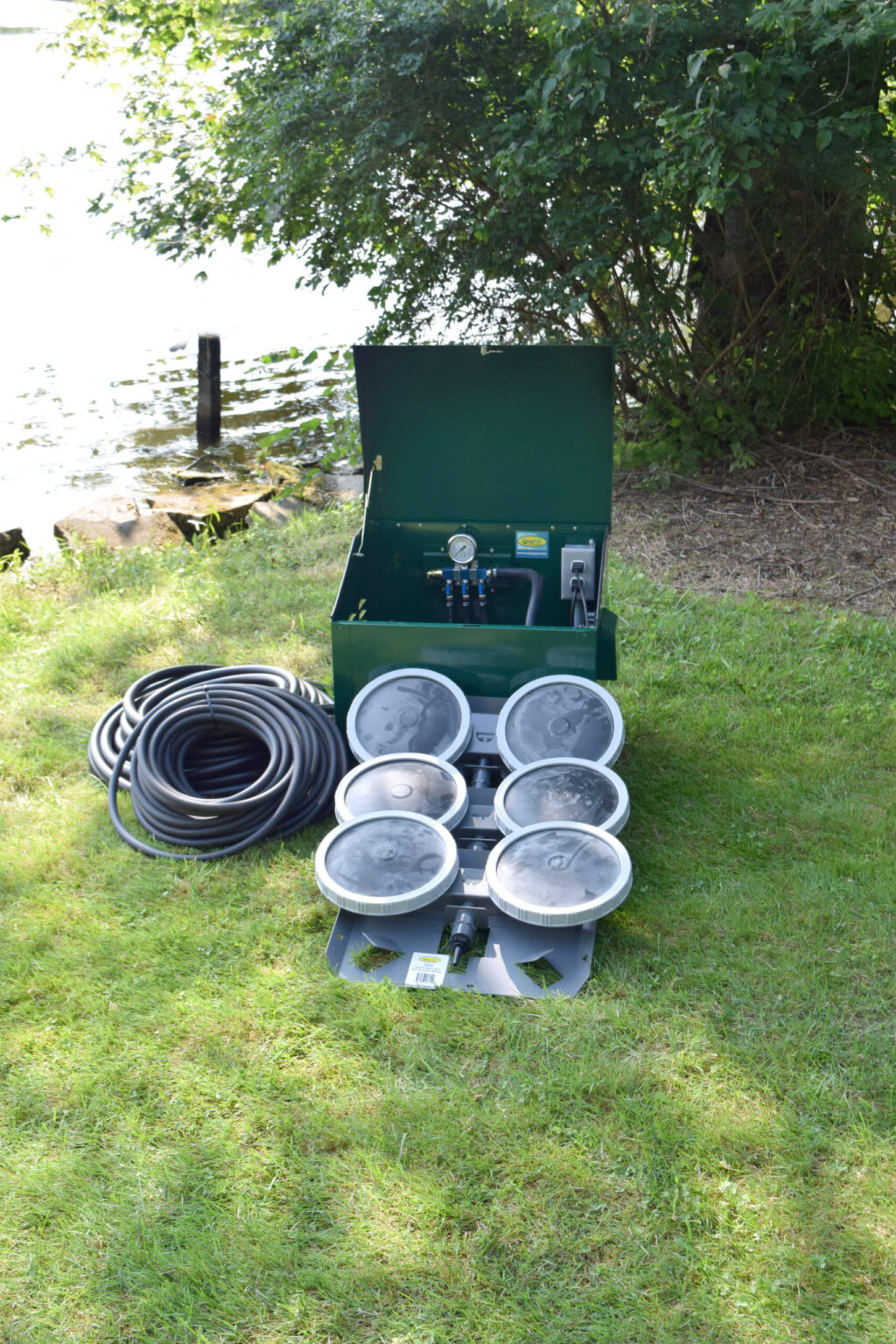

Easy Pro Sentinel Deluxe Aeration System - Complete Rocking Piston Aeration system in SC22 cabinet

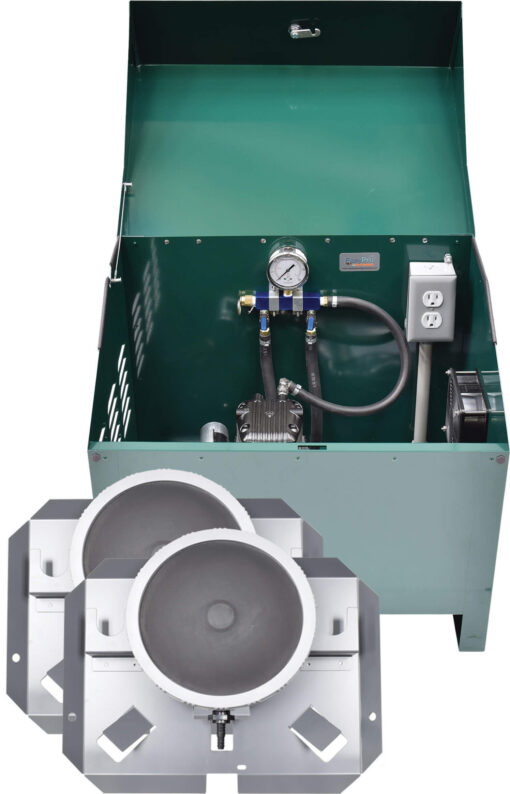

Easy Pro Sentinel Deluxe Aeration System - Complete Rocking Piston Aeration system in SC22 cabinet - Image 2

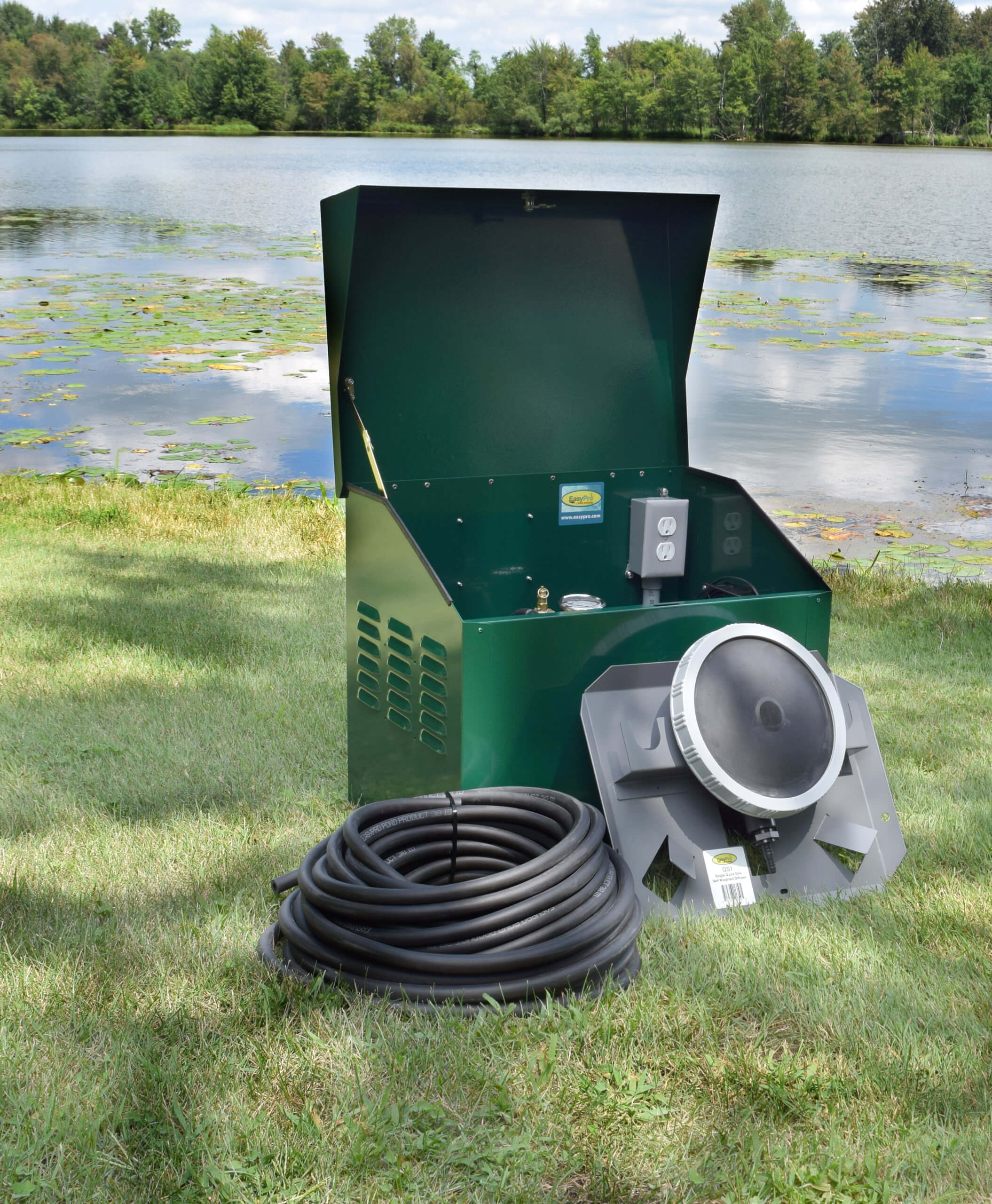

Easy Pro Sentinel Deluxe Aeration System - Complete Rocking Piston Aeration system in SC22 cabinet - Image 3

Easy Pro Sentinel Deluxe Aeration System – Complete Rocking Piston Aeration system in SC22 cabinet

Price range: $1,675.43 through $3,404.69

Sentinel Deluxe Aeration Systems are designed for convenience, reliability and QUIET!

Many pre-installed features allow for fast and easy installation. Simply set the cabinet in desired location, install the air diffusers and connect the tubing!

THE INDUSTRY’S QUIETEST!

Stock type Price
PA34-2D Sentinel Deluxe Aeration System for Ponds up to 1 Acre – Complete System Contains Stratus™ SRC 1/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet and Two QS1 Diffusers $1,753.19
PA34D Sentinel Deluxe Aeration System for Ponds up to 1 Acre – Complete System Contains Stratus™ SRC 1/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet, QS1 Diffuser and QuickSink Tubing $1,675.43
PA65DLD Sentinel Deluxe Aeration System for Ponds up to 2 Acres – Complete System Contains Stratus™ SRC 1/2hp Compressor with Sound Shield, Deluxe 22″ Cabinet and QuickSink Tubing $2,221.19
PA66D Sentinel Deluxe Aeration System for Ponds up to 2 Acres – Complete System Contains Stratus™ SRC 1/2hp Compressor with Sound Shield, Deluxe 22″ Cabinet, Three QS2 Diffusers and QuickSink Tubing $2,524.49
PA83D Sentinel Deluxe Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet, Three QS2 Diffusers and QuickSink Tubing $2,933.09
PA86D Sentinel Deluxe Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet, Four QS2 Diffusers and QuickSink Tubing $3,404.69
Brand:
SKU: N/A Category: Brand:

Description



Sentinel Deluxe Aeration Systems contain EasyPro’s best selling Stratus™ SRC Series “Gen 2” Rocking Piston Compressors with revolutionary Sound Shield™ technology – the quietest compressors of their class in the industry!

These compressors are specifically designed for the demanding job of 24 hour operation. The oil-less design makes them ideal for lake and pond aeration systems. Stratus™ SRC Series Compressors and Sound Shield™ are assembled in the USA.

PA34-2D Sentinel Deluxe Aeration System for Ponds up to 1 Acre – Complete System Contains Stratus™ SRC 1/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet and Two QS1 Diffusers

PA34-2D Sentinel Deluxe Aeration System includes:

  • SRC25SS Stratus™ SRC 1/4 hp Air Compressor with Sound Shield™ pre-installed
  • SC22 Deluxe 22″ Ground Mount Locking Cabinet
  • Cabinet hardware
  • Noise reducing foam pre-installed
  • Valved outlet assembly pre-installed
  • Pressure gauge pre-installed
  • Pressure relief valve pre-installed
  • Cooling fan pre-installed
  • Electrical box/outlet pre-installed and ready for your incoming power line
  • Heat reducing hose and 3/8″ connections
  • QS1 QuickSink Weighted Diffuser (single head)
  • Purchase tubing separately
Name Quantity
Tubing
None Included
Horsepower
1/4 HP
Voltage
115v (add 2 behind part # for 230v)
Amps
1.7/0.9 amps (at 10′ operating depth)
Maximum Air Flow
2.3 cfm
Maximum Depth
50′
Weight
85lbs

PA34D Sentinel Deluxe Aeration System for Ponds up to 1 Acre – Complete System Contains Stratus™ SRC 1/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet, QS1 Diffuser and QuickSink Tubing

PA34DP Sentinel Deluxe Aeration System includes:

  • SRC25SS Stratus™ SRC 1/4 hp Air Compressor with Sound Shield™ pre-installed
  • SC22 Deluxe 22″ Ground Mount Locking Cabinet
  • Cabinet hardware
  • Noise reducing foam pre-installed
  • Valved outlet assembly pre-installed
  • Pressure gauge pre-installed
  • Pressure relief valve pre-installed
  • Cooling fan pre-installed
  • Electrical box/outlet pre-installed and ready for your incoming power line
  • Heat reducing hose and 3/8″ connections
  • QS1 QuickSink Weighted Diffuser (single head)
  • 100′ of 3/8″ QuickSink weighted tubing with fittings for connections
Name Quantity
Tubing
100 ft 3/8″ Quick Sink
Horsepower
1/4 HP
Voltage
115v (add 2 behind part # for 230v)
Amps
1.7/0.9 amps (at 10′ operating depth)
Maximum Air Flow
2.3 cfm
Maximum Depth
50′
Weight
97lbs

PA65DLD Sentinel Deluxe Aeration System for Ponds up to 2 Acres – Complete System Contains Stratus™ SRC 1/2hp Compressor with Sound Shield, Deluxe 22″ Cabinet and QuickSink Tubing

PA65DLD Sentinel Deluxe Aeration System includes:

  • SRC50SS Stratus™ SRC 1/2 hp Air Compressor with Sound Shield™ pre-installed
  • SC22 Deluxe 22″ Locking Cabinet – with noise reducing foam pre-installed
  • Cabinet hardware for either post mounted OR ground mounted cabinet placement!
  • Valved outlet assembly pre-installed
  • Pressure gauge pre-installed
  • Pressure relief valve pre-installed
  • Cooling fan pre-installed
  • Electrical box/outlet pre-installed and ready for your incoming power line
  • Heat reducing hose and 3/8″ connections
  • 200′ of 3/8″ QuickSink weighted tubing with fittings for connections
  • Purchase diffusers separately
Name Quantity
Tubing
200 ft 3/8″ Quick Sink
Horsepower
1/2 HP
Voltage
115v (add 2 behind part # for 230v)
Amps
3.6/1.8 amps (at 10′ operating depth)
Maximum Air Flow
4.5 cfm
Maximum Depth
50′
Weight
113lbs

PA66D Sentinel Deluxe Aeration System for Ponds up to 2 Acres – Complete System Contains Stratus™ SRC 1/2hp Compressor with Sound Shield, Deluxe 22″ Cabinet, Three QS2 Diffusers and QuickSink Tubing

PA66D Sentinel Deluxe Aeration System includes:

  • SRC50SS Stratus™ SRC 1/2 hp Air Compressor with Sound Shield™ pre-installed
  • SC22 Deluxe 22″ Ground Mount Locking Cabinet
  • Cabinet hardware
  • Noise reducing foam pre-installed
  • Valved outlet assembly pre-installed
  • Pressure gauge pre-installed
  • Pressure relief valve pre-installed
  • Cooling fan pre-installed
  • Electrical box/outlet pre-installed and ready for your incoming power line
  • Heat reducing hose and 3/8″ connections
  • Three QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
  • 300′ of 3/8″ QuickSink weighted tubing with fittings for connections
Name Quantity
Tubing
300 ft 3/8″ Quick Sink
Horsepower
1/2 HP
Voltage
115v (add 2 behind part # for 230v)
Amps
3.6/1.8 amps (at 10′ operating depth)
Maximum Air Flow
4.5 cfm
Maximum Depth
50′
Weight
176lbs

PA83D Sentinel Deluxe Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet, Three QS2 Diffusers and QuickSink Tubing

PA83D Sentinel Deluxe Aeration System includes:

  • SRC34SS Stratus™ SRC 3/4 hp Air Compressor with Sound Shield™ pre-installed
  • SC22 Deluxe 22″ Ground Mount Locking Cabinet
  • Cabinet hardware
  • Noise reducing foam pre-installed
  • Valved outlet assembly pre-installed
  • Pressure gauge pre-installed
  • Pressure relief valve pre-installed
  • Cooling fan pre-installed
  • Electrical box/outlet pre-installed and ready for your incoming power line
  • Heat reducing hose and 3/8″ connections
  • Three QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
  • 300′ of 3/8″ QuickSink weighted tubing with fittings for connections
Name Quantity
Tubing
300 ft 3/8″ Quick Sink
Horsepower
3/4 HP
Voltage
115v (add 2 behind part # for 230v)
Amps
4.5/2.3 amps (at 10′ operating depth)
Maximum Air Flow
6.5 cfm
Maximum Depth
50′
Weight
172 lbs.lbs

PA86D Sentinel Deluxe Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet, Four QS2 Diffusers and QuickSink Tubing

PA86D Sentinel Deluxe Aeration System includes:

  • SRC34SS Stratus™ SRC 3/4 hp Air Compressor with Sound Shield™ pre-installed
  • SC22 Deluxe 22″ Ground Mount Locking Cabinet
  • Cabinet hardware
  • Noise reducing foam pre-installed
  • Valved outlet assembly pre-installed
  • Pressure gauge pre-installed
  • Pressure relief valve pre-installed
  • Cooling fan pre-installed
  • Electrical box/outlet pre-installed and ready for your incoming power line
  • Heat reducing hose and 3/8″ connections
  • Four QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
  • 600′ of 3/8″ QuickSink weighted tubing with fittings for connections
Name Quantity
Tubing
600 ft 3/8″ Quick Sink
Horsepower
3/4 HP
Voltage
115v (add 2 behind part # for 230v)
Amps
4.5/2.3 amps (at 10′ operating depth)
Maximum Air Flow
6.5 cfm
Maximum Depth
50′
Weight
260lbs

Additional information

type

PA34-2D Sentinel Deluxe Aeration System for Ponds up to 1 Acre – Complete System Contains Stratus™ SRC 1/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet and Two QS1 Diffusers, PA34D Sentinel Deluxe Aeration System for Ponds up to 1 Acre – Complete System Contains Stratus™ SRC 1/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet, QS1 Diffuser and QuickSink Tubing, PA65DLD Sentinel Deluxe Aeration System for Ponds up to 2 Acres – Complete System Contains Stratus™ SRC 1/2hp Compressor with Sound Shield, Deluxe 22″ Cabinet and QuickSink Tubing, PA66D Sentinel Deluxe Aeration System for Ponds up to 2 Acres – Complete System Contains Stratus™ SRC 1/2hp Compressor with Sound Shield, Deluxe 22″ Cabinet, Three QS2 Diffusers and QuickSink Tubing, PA83D Sentinel Deluxe Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet, Three QS2 Diffusers and QuickSink Tubing, PA86D Sentinel Deluxe Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4hp Compressor with Sound Shield, Deluxe 22″ Cabinet, Four QS2 Diffusers and QuickSink Tubing
