Description

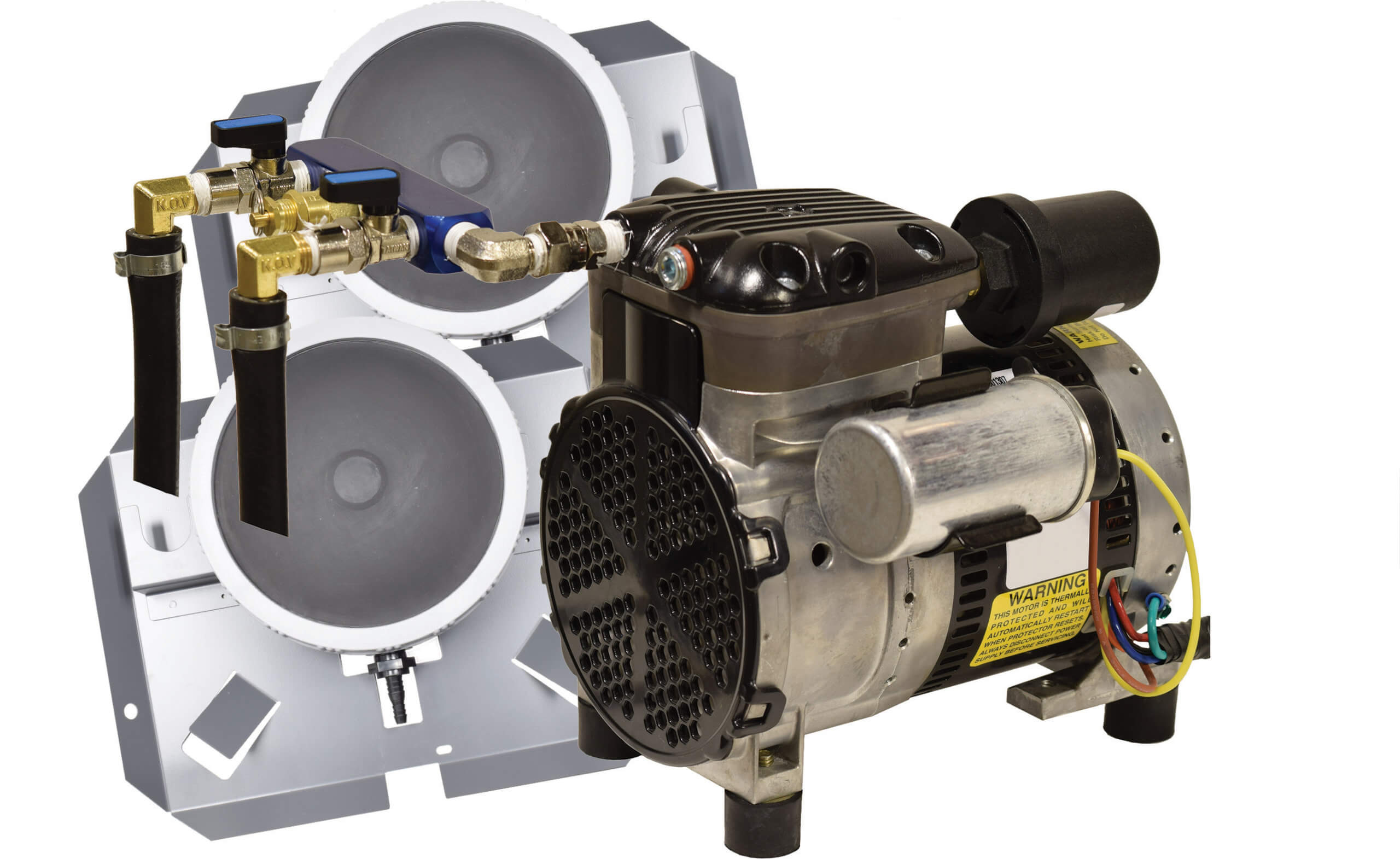

PA34-2 Rocking Piston Pond Aeration System – 1/4 HP Kit with Two Single Diffusers and NO Tubing

PA34-2 features:

• 1/4 hp Stratus SRC25 Gen 2 compressor with two year warranty
• Two valve manifold with pressure relief
• Valved outlet with heat reducing hose and 3/8″ connections
• Two QS1 Quick Sink self weighted single head air diffusers
• Kit does not include tubing, order 3/8″ tubing (weighted or unweighted) as needed
• Approximately 1.1 cfm of air flow per diffuser
• Typical operation cost of $0.40 per 24 hours at .09¢ per kWh, actual cost may vary
• PA34-2 requires weather protection for the compressor

Aeration Kit for Ponds up to 2 acres
2 Year Warranty on Compressor
5 Year Warranty on Tubing and Diffusers

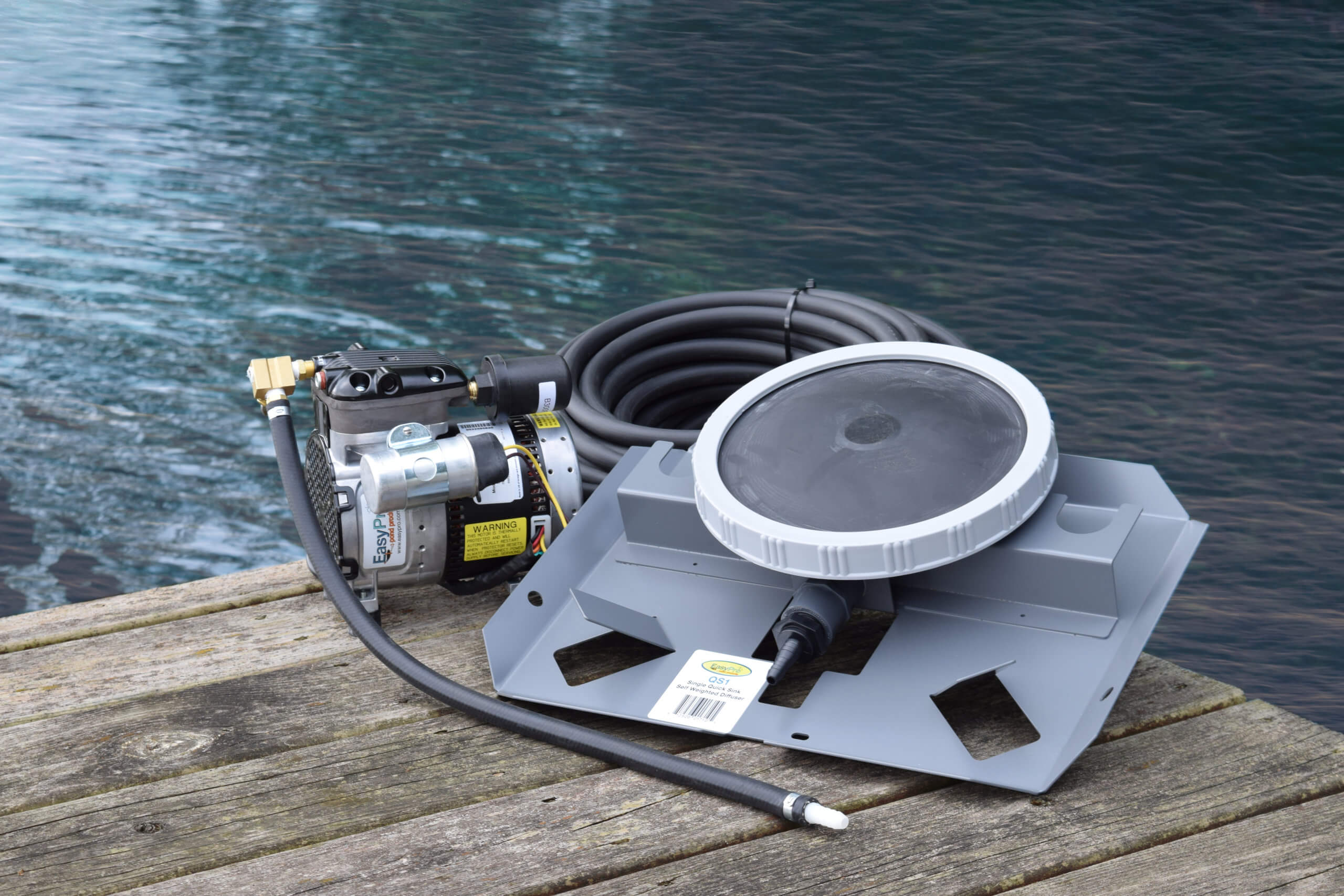

PA34W Rocking Piston Pond Aeration System – 1/4 HP Kit with Quick Sink Tubing

PA34W features:

• 1/4 hp Stratus SRC25 Gen 2 compressor with two year warranty
• Outlet assembly with pressure relief, heat reducing hose and 3/8″ connections
• QS1 Quick Sink self weighted single head air diffuser
• 100′ of 3/8″ Quick Sink weighted tubing
• Approximately 2.3 cfm of air flow per diffuser
• Typical operation cost of $0.40 per 24 hours at .09¢ per kWh, actual cost may vary
• PA34W requires weather protection for the compressor

Aeration Kit for Ponds up to 1 acre
2 Year Warranty on Compressor
5 Year Warranty on Tubing and Diffuser

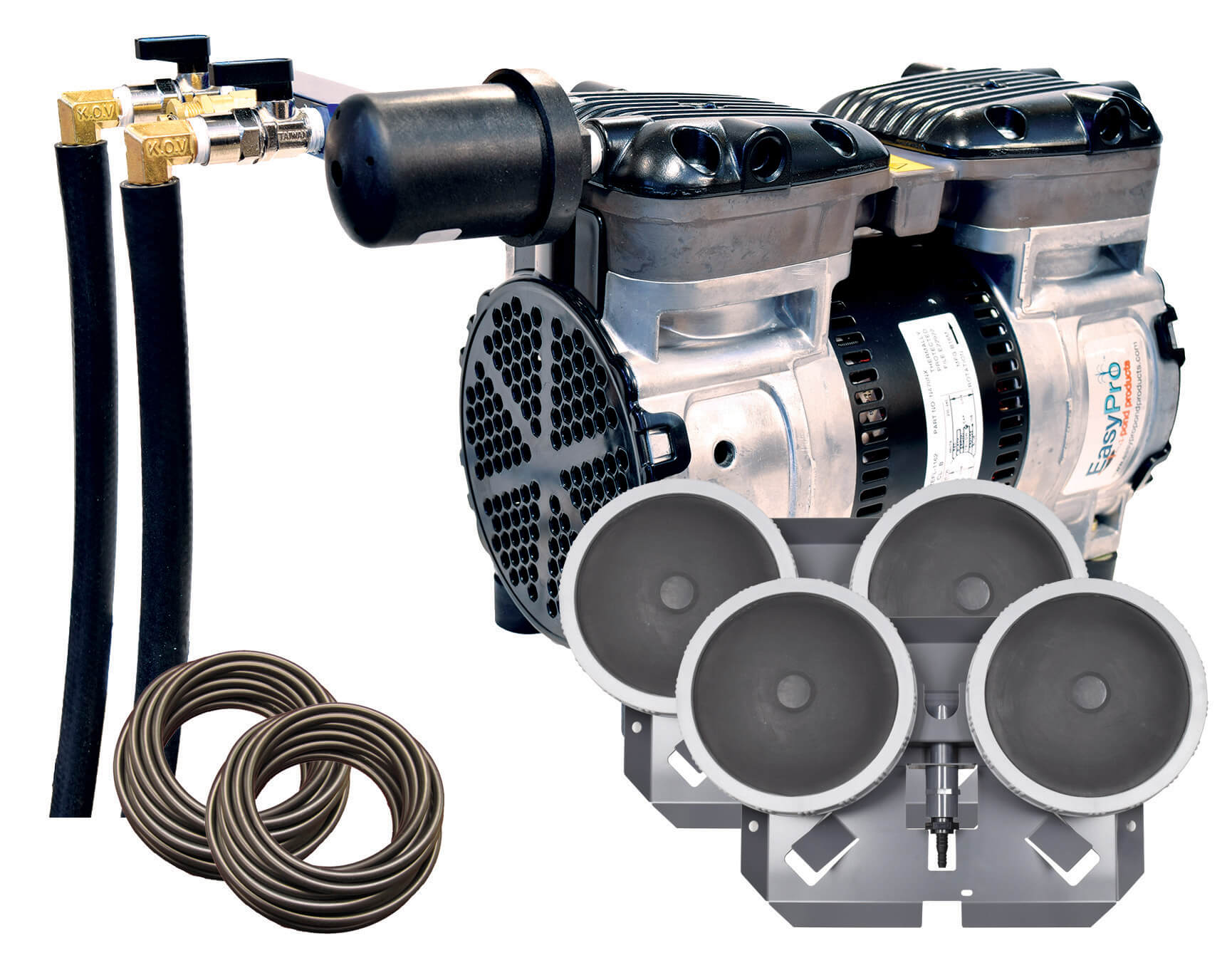

PA65W Rocking Piston Pond Aeration System- 2 outlet 1/2 HP Kit with Quick Sink Tubing

PA65W features:

• 1/2 hp Stratus SRC50 Gen 2 compressor with two year warranty
• Dual valve manifold with pressure relief
• Valved outlet with heat reducing hose and 3/8″ connections
• Two QS2 Quick Sink self weighted dual head air diffusers
• 200′ 3/8″ Quick Sink weighted tubing
• Approximately 2.2 cfm of air flow per diffuser
• Typical operation cost of $0.86 per 24 hours at .09¢ per kWh, actual cost may vary
• PA65W requires weather protection for the compressor

Aeration Kit for Ponds up to 2 acres 2 Year Warranty on Compressor 5 Year Warranty on Tubing and Diffusers

PA66W Rocking Piston Pond Aeration System- 1/2 HP Kit with Quick Sink Tubing

PA66W features:

• 1/2 hp Stratus SRC50 Gen 2 compressor with two year warranty
• Three valve manifold with pressure relief
• Valved outlet with heat reducing hose and 3/8″ connections
• Three QS2 Quick Sink self weighted dual head air diffusers
• 300′ 3/8″ Quick Sink weighted tubing
• Approximately 1.5 cfm of air flow per diffuser
• Typical operation cost of $0.86 per 24 hours at .09¢ per kWh, actual cost may vary
• PA66W requires weather protection for the compressor

Aeration Kit for Ponds up to 3 acres 2 Year Warranty on Compressor 5 Year Warranty on Tubing and Diffusers

PA83W Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4 hp Compressor, Three QS2 Diffusers and QuickSink Tubing

PA83W Aeration System includes:

• SRC75 Stratus™ SRC 3/4 hp Air Compressor
• Three valve manifold with pressure relief
• Valved outlet with heat reducing hose and 3/8″ connections
• Three QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
• 300′ of 3/8″ QuickSink weighted tubing
• This system requires weather protection for the compressor

Typical operation cost of $1.10 per 24 hours at .09¢ per kWh, actual cost may vary.  2 Year Warranty on Compressor. 5 Year Warranty on Diffusers and Tubing.

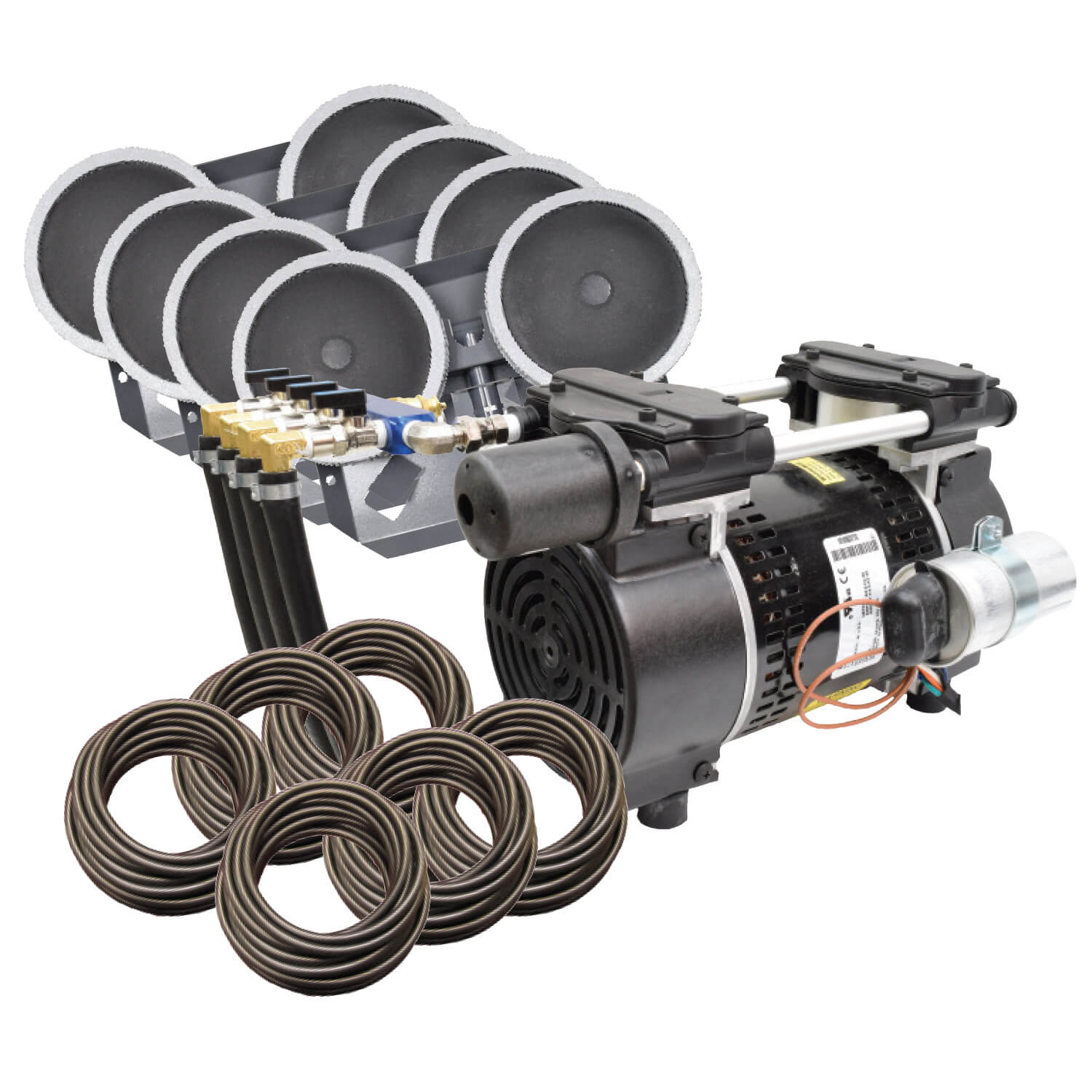

PA86W Rocking Piston Pond Aeration system – 3/4HP Kit with Quick Sink Tubing

PA86W features:

• 3/4 hp Stratus SRC75 Gen 2 compressor with two year warranty
• Four valve manifold with pressure relief
• Valved outlet with heat reducing hose and 3/8″ connections
• Four QS2 Quick Sink self weighted dual head air diffusers
• 600′ 3/8″ Quick Sink weighted tubing
• Approximately 1.6 cfm of air flow per diffuser
• Typical operation cost of $1.10 per 24 hours at .09¢ per kWh, actual cost may vary
• PA86W requires weather protection for the compressor

Aeration Kit for Ponds up to 4 acres 2 Year Warranty on Compressor 5 Year Warranty on Tubing and Diffusers
