Atlantic-OASE Filtral UVC with Pump

Price range: $156.99 through $276.99

Atlantic-OASE Filtral UVC with Pump

  • All-in-one in-pond filters integrate pump and filtration with a decorative element
  • OASE Filtral UVC multifunctional complete solution combines mechanical, biological and Ultraviolet filtration with multiple nozzle options to keep small ponds crystal clear, guaranteed
  • Easy open clips allow quick access to the filter media without dismantling the nozzle assembly while viewing port allows visual confirmation of proper UVC operation
  • Pivoting telescoping nozzle extends 5″, while built-in flow control and diverter valve can run an optional small secondary water feature using the included stepped hose adapter
  • Integrated grounding plate protects entire water feature with unparalleled safety
  • Filter foam and two types of bio-media including ceramic provide surface area for beneficial bacteria to deliver clear and healthy water
  • Qualifies for the OASE Clear Water Guarantee
Stock size Price
Filtral UVC 400 with pump $156.99
Filtral UVC 800 with pump $215.99
Filtral UVC 1600 with pump $276.99
Brand:
SKU: N/A Categories: , , Brand:

Description

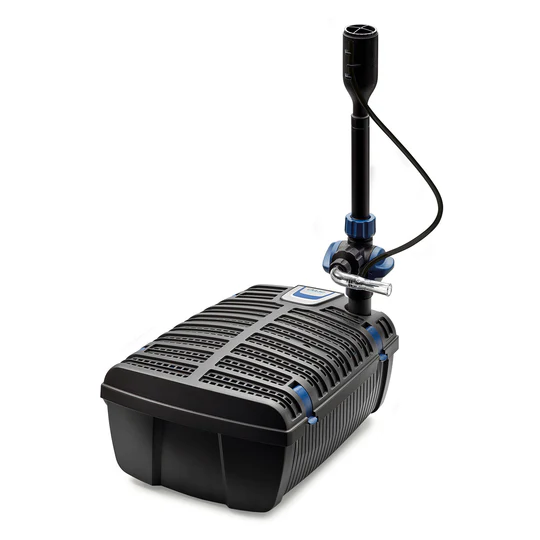

Atlantic-OASE Filtral UVC with Pump

Product Details

Oase Filtral UVC Filter is a multi-functional, pond technology solution to add movement and clear water in ponds up to 1600 gallons. This compact filtration system filters pond water in 3 ways. The built-in mechanical filter foam, Ultraviolet bulb, bio cores, and bio pebbles work to remove large particles from water, get rid of green water, and promote beneficial bacteria growth to deliver clearer water.

All models include a pivoting telescoping nozzle that extends 5″ and a built-in flow control and diverter valve. The diverter valve allows pond owners to have three things running at once. Filtration, a nice nozzle pattern, and run another water feature like a spitter. The Oase Filtral UVC Filter 800 and 1600 can also be used for added aeration.

Oase Filtral UVC Filter

Tech Specs

Oase Filtral UVC 400

Oase Filtral UVC 400
Oase Filtral UVC 800

Oase Filtral UVC 800
Oase Filtral UVC 1600

Oase Filtral UVC 1600
Application Submersible Pond Filter
With UV Light
Submersible Pond Filter
With UV Light
Submersible Pond Filter
With UV Light
Types of Filtration Mechanical, Biological
& Ultraviolet Filtration
Mechanical, Biological
& Ultraviolet Filtration
Mechanical, Biological
& Ultraviolet Filtration
Pond Size With Fish* Up to 200 Gallons Up to 400 Gallons Up to 800 Gallons
Pond Size Without Fish Up to 400 Gallons Up to 800 Gallons Up to 1600 Gallons
Dimensions 8″L x 9″W x 5″H 10.5″L x 9.5″W x 5.5″H 13.5″L x 11″W x 6″H
Pump Max Flow Rate
(Gallons per Hour)
195 GPH 235 GPH 410 GPH
Max Head
(Feet)
4′ 4′ 6′
UVC Bulb Size
(Watts)
5-Watt Bulb 9-Watt Bulb 13-Watt Bulb
Included Nozzles Lava, Vulkan & Magma Lava, Vulkan, Magma,
& Aeration
Lava, Vulkan, Magma,
& Aeration
Pivoting Telescoping Nozzle Nozzle Extends up to 5″ Nozzle Extends up to 5″ Nozzle Extends up to 5″
Flow Rate Regulator Diverter Valve Diverter Valve Diverter Valve
Wattage 20 Watts 22 Watts 50 Watts
Voltage 115-120 Volts 115-120 Volts 115-120 Volts
Power Cord Length 15′ 15′ 15′
Monthly Operating Cost
(24/7)**
$1.44 $1.58 $3.60
Warranty 2-Year 2-Year 2-Year

*Pond size is calculated assuming a light to medium fish load. Heavier fish loads may require additional filtration.

**Monthly Operating Cost was calculated at $0.10 per kilowatt-hour. Please note that costs will vary depending on location.

Note: UV bulbs are considered a wear item and are not covered under manufacturer warranties. For optimal performance, replace your UV bulb once per pond season.

Nozzle Spray Pattern Specs

Oase Filtral UVC Filter Lava Pattern

Lava
Oase Filtral UVC Filter Vulkan Pattern

Vulkan
Oase Filtral UVC Filter Magma Pattern

Magma
195 GPH Max Flow Rate 10″W 24″W x 26″H 24″W x 16″H
235 GPH Max Flow Rate 8″W 22″W X 24″H 20″W X 24″H
410 GPH Max Flow Rate 16″W 40″W x 40″H 40″W x 40″H

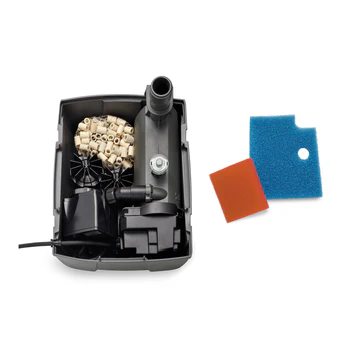

Box Components

  • Filter box
  • Biomedia for biological filtration
  • Filter foam for mechanical filtration
  • Pre-installed ultraviolet light bulb and pump
  • 3 Fountain nozzles (all models) 1 venturi aeration nozzle (models 800 & 1600 only)
  • 1/2″ (model 400) or 1″ (models 800 & 1600) Branch valve with the flow-rate regulator, allowing an additional water feature to be operating simultaneously with a fountain nozzle.

When to Use

Oase Filtral UVC Filtration System must be placed under the water in a horizontal position. This all-in-one filtration system is intended to clean water garden ponds.

How to Use

The submersible pond filter with UV light can be used with the following:

With the included spray nozzles to create various fountain displays. With the branch valve to run an additional water feature simultaneously with the fountain nozzle.Models 800 and 1600 can be used with the venturi aeration nozzle to greatly increase oxygen levels while increasing water circulation.

Additional information

size

Filtral UVC 400 with pump, Filtral UVC 800 with pump, Filtral UVC 1600 with pump
