Atlantic-OASE PAF-Series Pump

Description

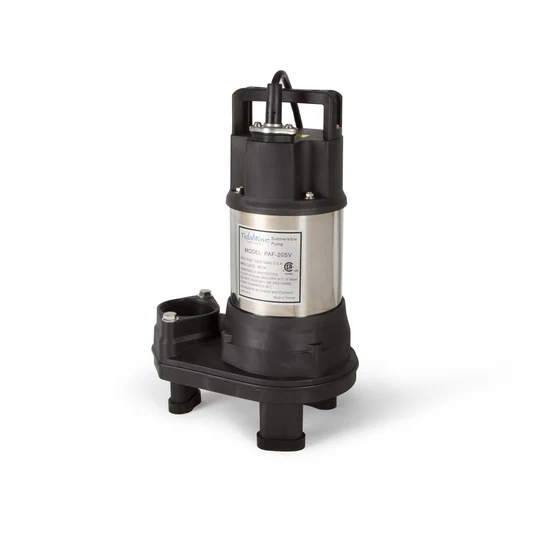

Atlantic-OASE PAF-Series Pump

Lightweight, energy-efficient, and corrosion-resistant, Atlantic TidalWave PAF-Series Direct Drive Pumps are now even more versatile, with a removable intake screen for conversion to true 1.25″ solids handling capacity. Double silicone carbide mechanical seals are perfect for demanding medium-head, high-volume applications.

Helpful Tips

Atlantic TidalWave PAF-Series Direct Drive Pumps have auto-cut thermal protection, so make sure the pump is always fully submerged underwater. If the pump keeps turning off, it is most likely overheating due to low water flow or low water level. If your water level is not too low, check the intake to make sure it is clear and not clogged by debris.

If your pond freezes in the winter, it is important to store your pump above freezing in a bucket with 6 inches of water during the winter to keep the seals moist.

How to Read a Water Pump Flow Chart

The Flow Chart below is designed to allow you to plot your pond’s water-flow requirements, and easily determine which pond pump will meet those requirements.

Start by calculating your pond’s specific water-flow requirements, measured by Head Pressure (Feet) and Gallons Per Hour (GPH) water flow. Our Interactive Pond Help Guide to Choosing a Pond Pump will guide you step-by-step through the process.

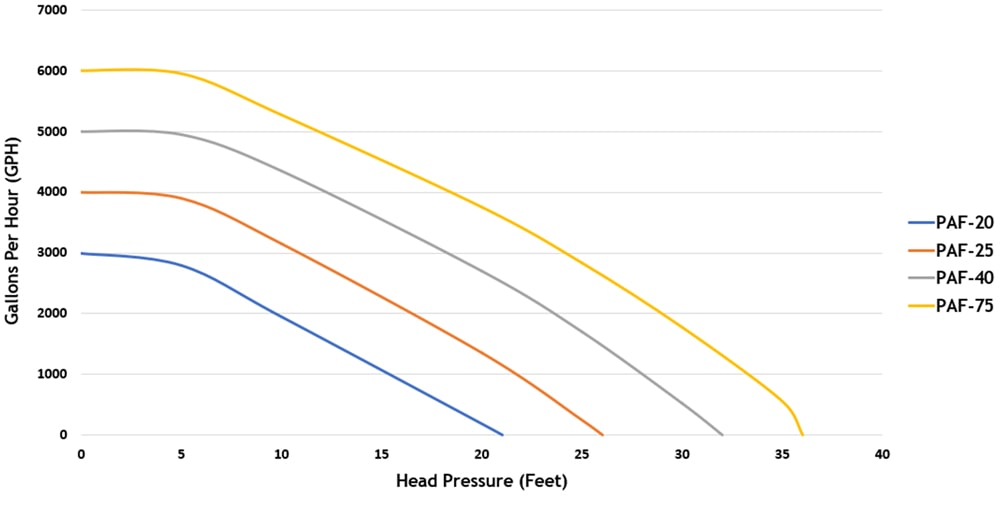

Flow Chart

After plotting your calculation on the Flow Chart, find a pump that falls in the middle third of the pump curve, not too close to either axis. Pumps that fall on the fringes of the curve will not work as efficiently for your application, and they will be pushed to their operating limits, reducing their life span.

Other Considerations When Choosing a Pump:

It’s Better to Oversize than Undersize: You are better to slightly oversize a pump than to undersize. When oversizing, you can always install a ball valve to reduce the water down to your desired flow.

Check Your Other Equipment: Choose a pump that does not exceed the indicated maximum flow rate on your filter or water feature. Also, be sure the tubing you select can handle the flow rate of your pump.

1/4 HP PAF-20 PAF-Series Pump

1/3 HP PAF-25 PAF-Series Pump

1/2 HP PAF-40 PAF-Series Pump

1 HP PAF-75 PAF-Series Pump
