Airmax SilentAir T100 (RP100) 1 HP Maintenance Kit

Description

Replacement Maintenance Kit is designed to replace worn parts inside each 1 HP T100 (RP100) Airmax SilentAir Dual Rocking Piston Compressor. We recommend installing a maintenance kit every 12 to 18 months to ensure optimum airflow performance. Kit includes everything you need to restore your Airmax Aeration System to its maximum potential.

This maintenance kit is compatible with aeration models: Airmax PondSeries PS60 systems with 5 and 6 plates, and LakeSeries LS120 with 6 to 12 plates.

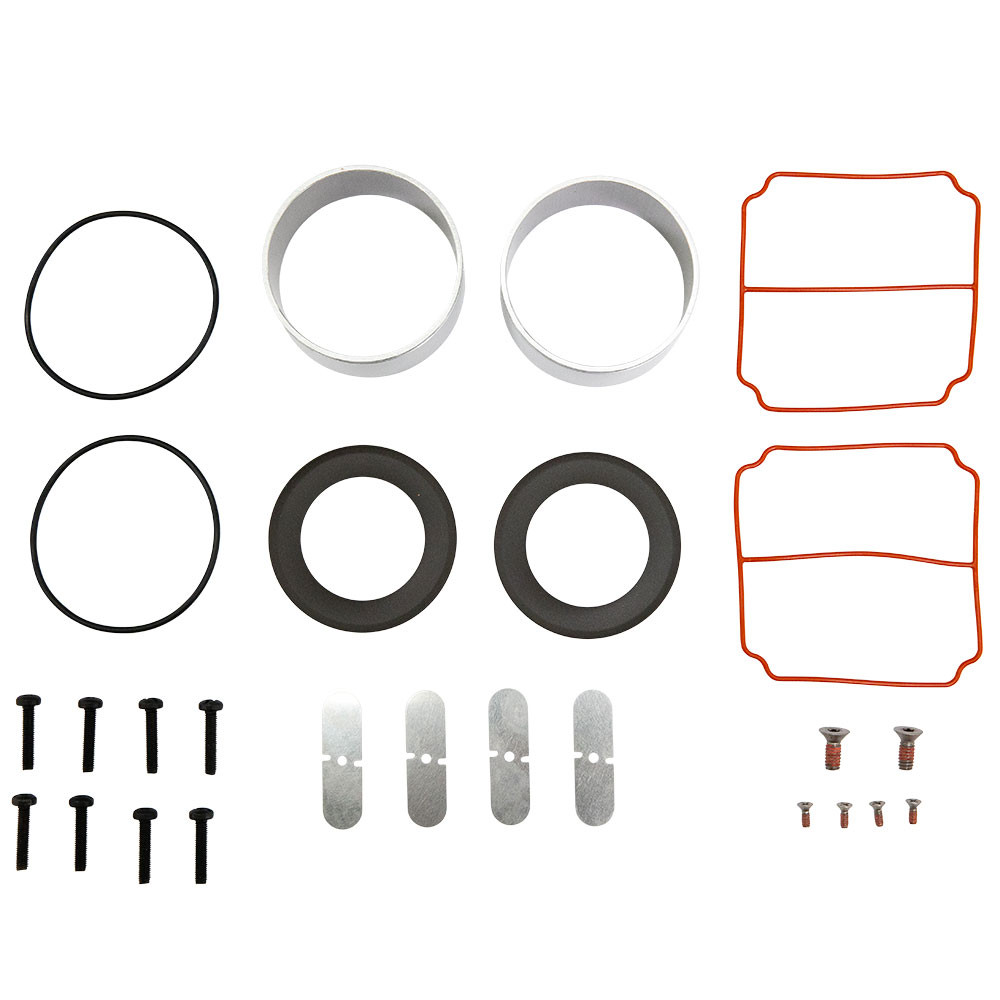

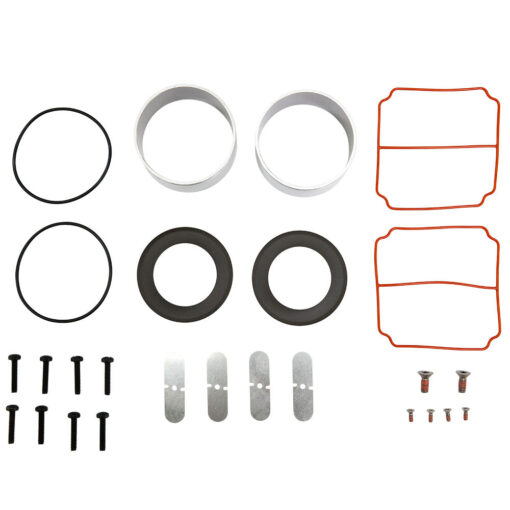

Kit Components

• 2 Head O-Rings
• 2 Cylinder Sleeves
• 2 Piston Retainer Plate Screws (T27 Torx Head)
• 2 Piston Cups
• 2 Cylinder O-Rings
• 4 Leaf Valves
• 4 Leaf Valve Screws (#2 Phillips Head)
• 8 Head Screws (T25 Torx Head)

Required Tools

• Crescent/Adjustable End Wrench
• 1/4″ Drive Ratchet
• 5/32″ Socket
• T20 Torx Screwdriver
• T25 Torx Socket
• T27 Torx Socket
• 7/16″ Socket
• 1/4″ Drive Torque Wrench (1-120 in lb)
• 1/4″ Nut Driver
• #2 Flat Head Screwdriver
• #2 Phillips Screwdriver
• Pick Tool
• Anti-Seize
• Optional Heat Source
