Name: Airmax PondSeries PS60 Aeration System - RNR Koi
Availability: InStock

Description

Overview

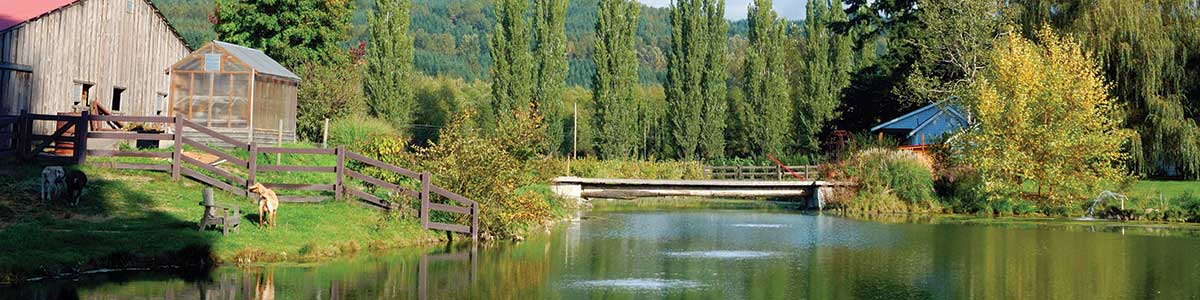

Livestock Near Pond

Airmax PondSeries PS60 With 5 Diffusers Aeration Systems are powerful enough to aerate ponds up to 5 acres, with a max depth of 50 feet. The PS60 With 5 Diffusers has a 1 HP compressor that effectively and efficiently delivers air to specialized diffusers on the pond bottom. The resulting column of rising bubbles circulates water throughout the pond, eliminating stratification and saturating your pond with life-giving oxygen.

Airmax PondSeries PS60 With 6 Diffusers Aeration Systems are powerful enough to aerate ponds up to 6 acres, with a max depth of 50 feet. The PS60 With 6 Diffusers has a 1 HP compressor that effectively and efficiently delivers air to specialized diffusers on the pond bottom. The resulting column of rising bubbles circulates water throughout the pond, eliminating stratification and saturating your pond with life-giving oxygen.

Airmax aerations systems feature industry-leading diffusers for maximum circulation and oxygen saturation. With increased oxygen and added natural bacteria, any excess nutrients in the pond or lake are metabolized, resulting in cleaner water and less muck. Results you can see in just 90 days!

Airmax PondSeries Aeration Systems are manufactured in the USA with high-performance, professional quality components and Integrated SmartStart Technology (IST).

Aeration circulates the water and increases oxygen, providing long-term benefits and reducing overall maintenance. Aeration is a key step in the Airmax Ecosystem, a simple 3 step approach to pond and lake management. The Airmax Ecosystem is the industry-leading method to achieve a clean, clear, thriving aquatic ecosystem. Learn more about the Airmax Ecosystem.

Airmax PondSeries PS60 With 5 Diffusers Aeration System

Tech Specs

	PS60 With 5 Diffusers
Max Pond Size	Up to 5 Acres
Max Diffuser Depth	50 Feet
Aerates Pond Up to 6-9′ Deep	Up to 2.5 Acres
Aerates Pond Up to 9-12′ Deep	Up to 3.5 Acres
Aerates Pond Over 12′ Deep	Up to 5 Acres
SilentAir Compressor	1 HP Rocking Piston Compressor
Running Amps	6.3 or 3.15
Voltage	115V or 230V
Wattage	725 Watts
Max CFM	7.1
Diffuser Type	(5) ProAir 4 Weighted Diffuser
Airmax Composite Cabinet	Large Cabinet
Cabinet Dimensions	27″L x 24″W x 18.75″H
Power Cord	6′ Cabinet Cord 2’6″ Compressor Cord
Airline Sold Separately	Set up for 5/8″ Airline Only
Monthly Operating Cost (24/7)*	$51.90
ProAir Diffuser Warranty	5 Years
Compressor & Electrical Component Warranty	3 Years
Composite Cabinet Warranty	10 Years
EasySet Airline Warranty	5 Years

SilentAir Compressor With Integrated SmartStart Technology (IST)

The heart and soul of the PS60 With 5 Diffusers Aeration System is the powerful whisper-quiet SilentAir 1 HP Rocking Piston Compressor built with Integrated SmartStart Technology (IST) to protect the compressor during pressurized restarts following power supply interruptions. The highly efficient 115V or 230V compressor has rubber mounts to reduce noise and vibrations and ensure a silent operation. This system can push up to 7.1 CFMs of oxygen to your pond while costing as little as $51.90 a month. Comes with a 3-year warranty.

Airmax Composite Cabinet

ETL electrical safety certified composite cabinet has a subtle design with a faux rock finish to blend into any landscape. The removable top and side high-density air intake filter protect the compressor and pre-wired electrical box from outside contaminants while providing easy access. Other cabinet features include an elevated base protecting against damaging flood water and a ventilation fan with a rain shroud that cools and protects against moisture and heat damage. Large cabinet dimensions: 27″L x 24″W x 18.75″H. Comes with a 10-year warranty.

ProAir 4 Weighted Diffusers

Designed for maximum oxygen uptake, 5 ProAir 4 Weighted Diffusers incorporate high-efficiency, low-maintenance membrane sticks to release tiny oxygen bubbles into the water column. Membrane diffusers have the synergy of air stones without the headaches of cracking and acid-washing. The ProAir 4 Weighted Diffuser has an integrated check valve to prevent back pressure on the compressor. The innovative sled keeps the ProAir 4 submerged while maintaining an upright position during installation. Comes with a 5-year warranty.

Airflow Manifold Assembly

Airmax simplifies airflow management to individual diffusers with a single 6-port manifold with nickel-plated ball valves, as well as an integrated pressure gauge and pressure relief valve. Additionally, the airflow manifold features a quick-change fitting for simplified maintenance and seasonal storage if your system does not run year-round. The PondSeries PS60 With 5 Diffusers is set up for a 5/8″ airline (Airline Sold Separately). The airline comes with a 5-year warranty.

Easy Installation With Options

Airmax Aeration Systems are the easiest and most versatile systems to install on the market. PondSeries PS60 With 5 Diffusers Aeration System can be installed at the water’s edge or up to 1/4 mile away from the pond or lake. No power is needed at the shore, and select from 115V or 230V systems. Airmax EasySet airline delivers oxygen to the water without the added expense of hiring an electrician.

Aeration Plate Under Water

Included With the PondSeries PS60 Aeration System With 5 Diffusers

SilentAir Rocking
Piston Compressor

Highly efficient, 1 HP SilentAir Rocking Piston Compressor and manifold with ball valves simplifies airflow management and continuous performance to individual diffusers.

Composite
Cabinet

ETL electrical safety certified composite cabinet features a quiet design with a faux rock finish that blends into any landscape while protecting electrical components.

Weighted Diffuser
Plates

5 ProAir 4 Weighted Diffusers have an innovative maintenance-free sled design that keeps them submerged in water while maintaining an upright position during installation.

Enhanced Cooling
System

The cabinet features a protective rain shroud and pre-wired high flow cooling fan that tunnels air flow evenly through the cabinet protecting compressors against moisture and heat damage.

Dual Air
Filters

High-density cabinet intake pre-filter and compressor air filter maximize the performance and longevity of the system, by protecting the compressor from outside contaminants.

Pressure Gauge &
Relief Valve

The compressor includes a pressure gauge to help monitor system performance and a pressure relief valve to protect against backpressure.

Optional Aeration System Accessories

Remote
Manifold Kit

Designed for aeration installations where the power source is away from the pond’s edge. Allowing you to make airflow adjustments from the pond’s edge where you can remain in view of the diffusers.

Cabinet Post
Mount Kit

Use the powdered coated aluminum Cabinet Post Mount Kit for installations that require the aeration cabinet to be elevated. Includes bracket and hardware to secure cabinet to both round or square wooden posts, 4″ diameter or larger.

Cabinet
Security Kit

Simple, sleek design to protect all Airmax Aeration Systems. The Cabinet Security Kit can be used to anchor an aeration system to the ground and protect against unwanted guests.

5/8″ EasySet Weighted
Airline

Extend you aeration system’s reach with EasySet Airline. 5/8″ self-weighted airline sinks to the bottom of the pond and is puncture resistant for years of continuous use.

Junction
Valve Box

The Junction Valve Box fits directly under your aeration cabinet. It is designed to allow for easy access to airline connections on your compressor manifold for maintenance or winter removal.

Direct Burial
Airline

5/8″ Direct Burial Airline is designed for underground applications. Ideal during aeration installations when the power source is away from the pond’s edge. The rigid wall makes it resistant to deformation and crushing.

5/8″ Airline
Connector Kits

A must have for aeration installations. EasySet Airline Connector Kits include 5/8″ barbed fittings and 2 stainless-steel hose clamps to connect two different lengths of self-weighted or direct burial airline securely in place.

Camlock
Connector Kits

Provides fast and easy connection between compressor hoses and underground airlines. Ideal for systems that are removed and stored during the winter.
