Name: Airmax EcoSeries 3 Pattern Control Panel 100' - 400' Stainless-Steel Cord - RNR Koi
Availability: InStock

Description

Overview

Airmax Classic Fountain in Pond

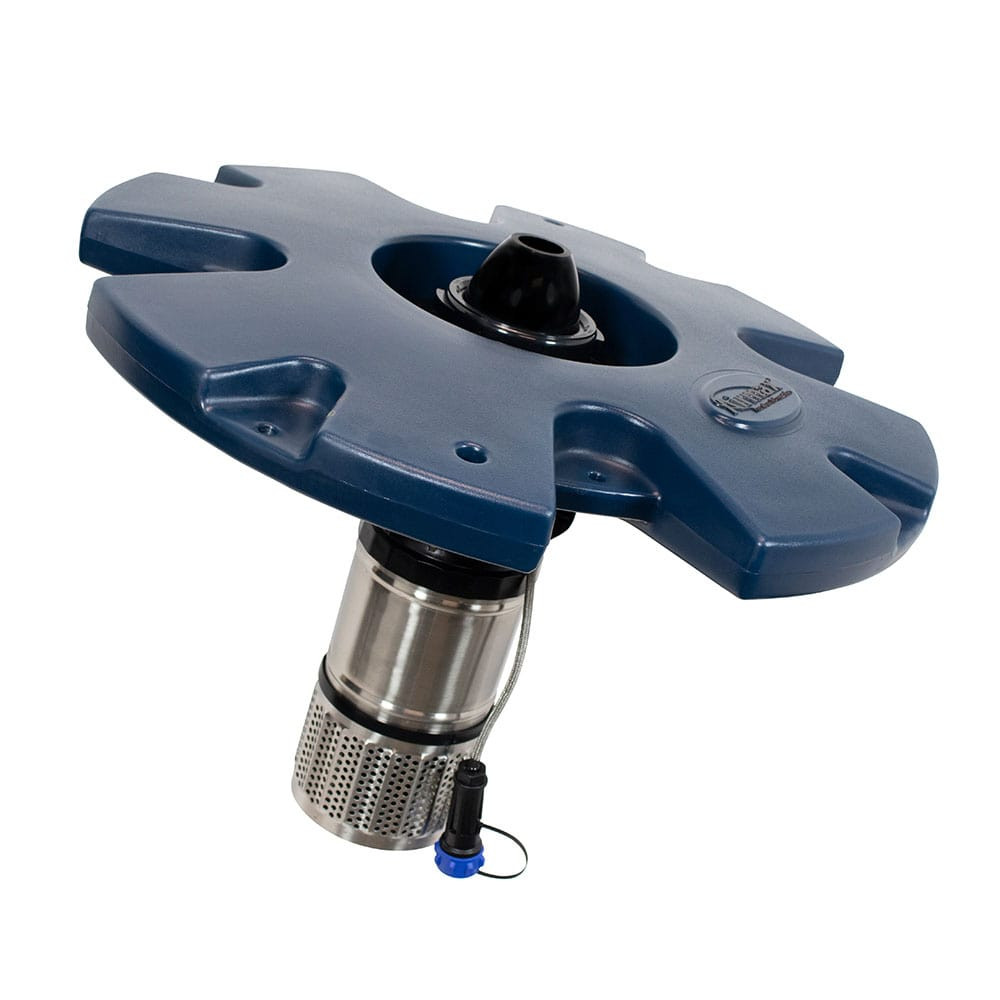

Airmax EcoSeries 1/2 HP Floating Fountain

The EcoSeries Floating Fountain showcases beautiful industry-leading spray patterns that outmatch other 3/4 HP and 1 HP fountains. The EcoSeries Fountain operates in as little as 24″ of depth. It includes an energy-efficient 1/2 HP motor, three spray patterns, and a control panel. It comes standard with a 100′ power cord. The EcoSeries Fountain is also available in 150′, 200′, 250′, 300′, 350′ or 400′.

Easy to Install – The EcoSeries Fountain was designed for easy installation without tools for assembly or when changing Nozzles. The EcoSeries Fountain has a quick disconnect cord to remove and float the motor easily.

Energy Efficient – The 1/2 HP motor is energy efficient, drawing 5.8 amps and 667 watts on 115V power. The asynchronous motor, silicon carbide shaft bearing, and ceramic shaft sit inside a stainless steel body with a suction screen.

Spray Patterns – The EcoSeries Fountain has three spray patterns: Classic, Trumpet, and Crown & Trumpet. Optional nozzles are available in Single Arch, Double Arch, Double Arch and Geyser, and Blossom.

Control Panel – Run your fountain and the optional LED Light Set with the included Plug & Play Control Panel. The control panel comes with a 3-year warranty.

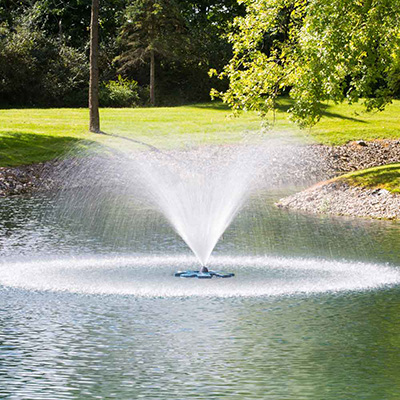

Airmax EcoSeries Fountain in Pond

EcoSeries Included Spray Patterns

Classic Pattern

Pattern Dimensions:
6’H x 16’W

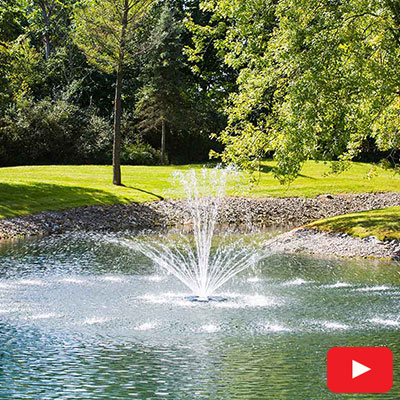

Crown & Trumpet Pattern

Pattern Dimensions:
Trumpet: 8’H x 4’W
Crown: 4’H x 32’W

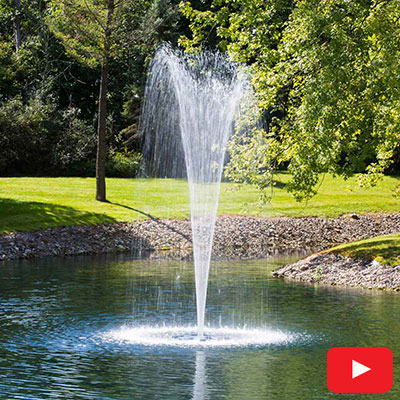

Trumpet Pattern

Pattern Dimensions:
14’H x 7’W

EcoSeries Optional Spray Patterns

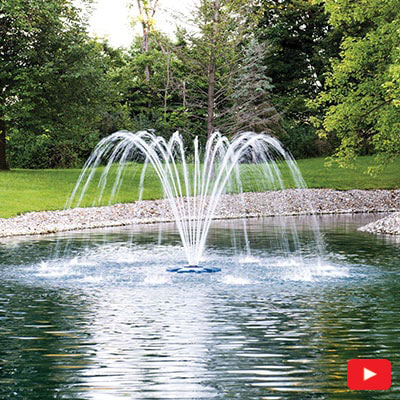

Single Arch Pattern

Pattern Dimensions:
8’H x 16’W

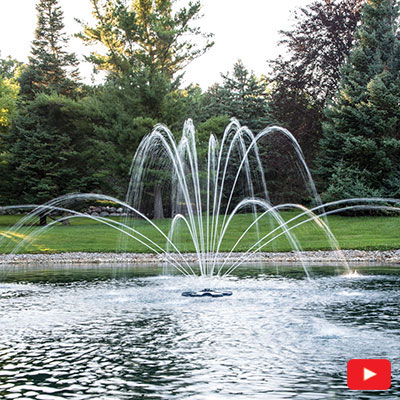

Double Arch Pattern

Pattern Dimensions:
1^st Tier: 10’H x 16’W
2^nd Tier: 5’H x 38’W

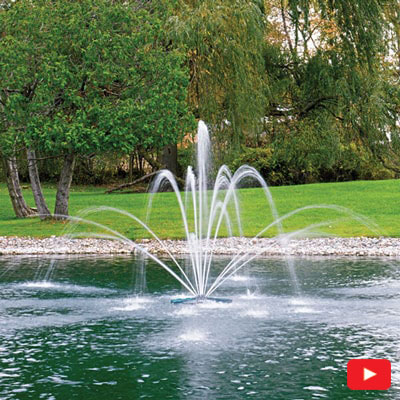

Double Arch & Geyser Pattern

Pattern Dimensions:
Geyser: 9’H
1^st Tier: 7’H x 12’W
2^nd Tier: 5’H x 34’W

EcoSeries Optional Spray Pattern

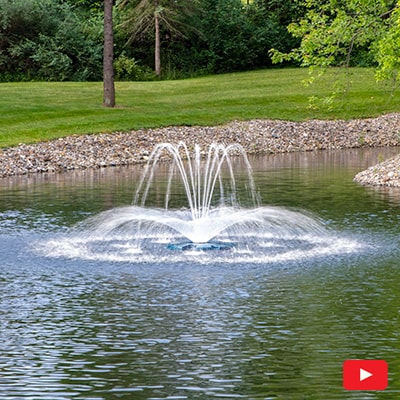

Blossom (Crown & Arch) Pattern

Pattern Dimensions:
1^st Tier: 4’H x 6.5’W
2^nd Tier: 1.5’H x 11’W

What is Included With the EcoSeries?

Classic Spray Pattern

The Classic Spray
Pattern comes pre-installed on the EcoSeries Fountain. This beautiful full pattern provides relaxing sounds as the water breaks the surface.

Crown & Trumpet
Spray Pattern

The Crown & Trumpet Spray Pattern combines the beauty of the arch and trumpet pattern creating a majestic display.

Trumpet Spray
Pattern

The Trumpet Spray Pattern provides a bountiful, tall burst of water giving you the tranquil sound of water.

Power Cord
w/Disconnect

Standard 100′ power cord, underwater quick disconnect and stainless steel strain relief. Also available in 150′, 200′, 250′, 300′, 350′ and 400′ lengths.

115V Plug & Play
Control Panel

115 Volt / 15Amp Plug & Play Control Panel includes two outlets to power both the fountain and optional light kits. Programmable 24-hour digital timers allows you to independently program fountain and light run times.

Optional Features and Accessories

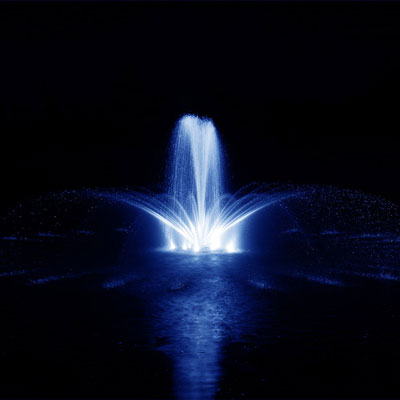

RGBW Color-Changing LED Light Sets

Now, you can set the mood by changing the color to white, blue, green, red, and more with a wireless remote of up to 200 feet. The Airmax RGBW Color-Changing LED Light Set and wireless remote (2 AAA batteries included) allows you to change colors, dim/brighten the lights, control flash speed, and run up to 9 preset programs.

The adjustable above-waterline design and completely sealed light housing ensure a maintenance-free operation. Lights easily clip onto the EcoSeries float, making for a fast installation with no tools required. All light sets come standard with a 100′ power cord and strain relief: 150′, 200′, 250′, 300′, 350′, and 400′ power cord lengths are available. All light sets also include an underwater disconnect and stainless-steel braiding between light fixtures and power leads to protect the power cord. Available in 2, 4, and 8 Light Sets. 3-year warranty.

Power Cord Options

All Airmax floating fountains come with a standard power cord; however, if you have nuisance pond wildlife like beavers, muskrats, or nutria that are notorious for chewing, you may want to explore our cord protection options. Replacement cords can be expensive and time-consuming, so investing in cord protection is an excellent insurance policy for your fountain. Airmax power cords can be wrapped with our durable PolyFlex protective sheathing, or if you are looking for something more substantial, we highly recommend the stainless-steel option for the ultimate power cord protection. Remember to ask your Airmax Professional Installer about cord protection for your fountain. You won’t regret it!

Stainless-Steel Cord Protection

	EcoSeries 1/2 HP Fountain
Recommended Pond Size	Aerates Ponds up to 1/4 Acre
Motor Size	1/2 HP
Fountain Wattage	667 Watts
Fountain Running Amps	5.8 Amps
Fountain Voltage	115 Volts
Minimum Operating Depth	24 Inches
Maximum Spray Height	14 Feet
Included Patterns	Classic, Crown & Trumpet, Trumpet
Optional Spray Patterns	Single Arch, Double Arch, Double Arch & Geyser Spinning Blossom
Control Panel Includes	Dual Digital Timers up to 8 Run Cycles
Control Panel Voltage/Amp Rating	115V / 15A
Control Panel Enclosure Type	Thermoset Fiberglass
Available Power Cord Lengths	100′, 150′, 200′, 250′, 300′, 350′, 400′
Available Protective Cord Sleeves	Standard, PolyFlex, Stainless Steel
Warranty	3 Years
Daily Operating Cost (8 hrs/day)*	$0.53

*Daily Operating Cost is calculated at $0.10 per kilowatt hour. Please note that costs vary by location. For more accurate operating cost use our energy calculator.

Easy Installation

Airmax made the EcoSeries 1/2 HP Fountain easy to assemble. Assembling or changing nozzles doesn’t require any tools. The EcoSeries Fountain features an underwater quick disconnect cord for effortlessly removing the motor and float.

Included Control Panel

Each fountain includes the ETL listed Airmax 115V / 15A Plug & Play Control Panel. This control panel has two 115-volt outlets ready to power one fountain and one optional light set. No complicated wiring is required. Plug in the 24-inch power cord whip into a standard 115-volt outlet. A fast-acting circuit breaker will shut off the electrical power in a ground fault. The control panel features dual digital timers, allowing you to independently program fountain and light run times up to 8 cycles.

Additional information

cord length	100' cord, 150' cord, 200' cord, 250' cord, 300' cord, 350' cord, 400' cord
